Specifications

Contacts	2NO
No. of Auxiliary Contacts	2NO
LED Block Rated Voltage	220 VDC
Upper/Lower Button Text	No Text/No Text
Bezel Material	Plastic

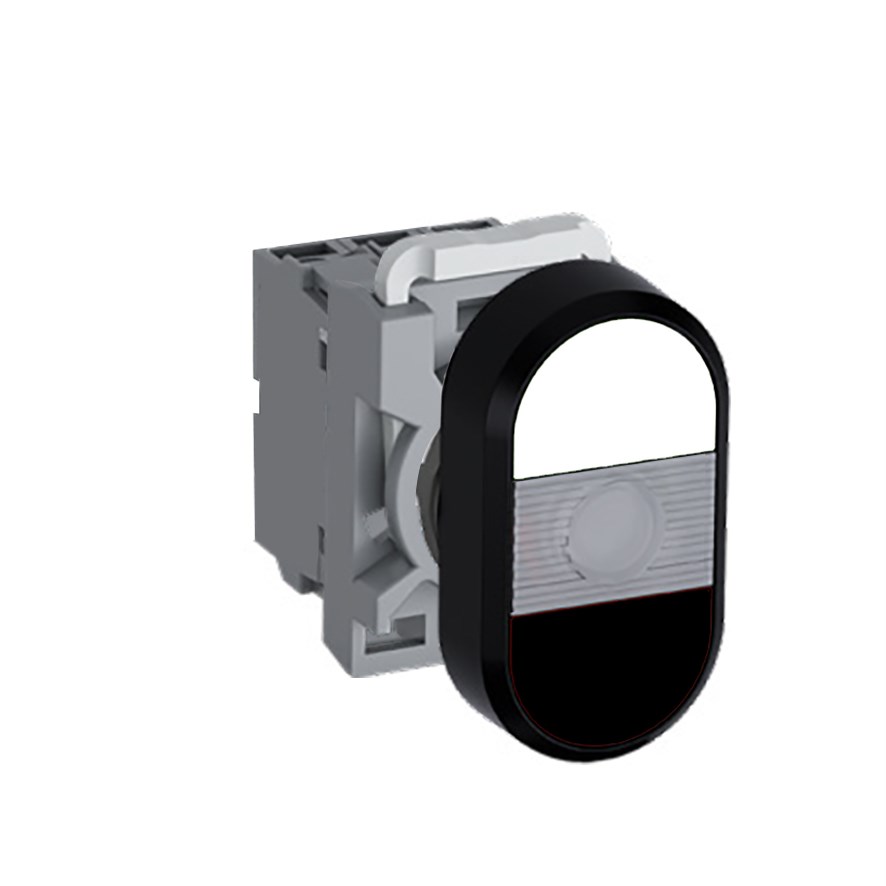

Product Type	Double Pushbutton Kit
Brand	ABB
Actuator Type	Flush/Flush
Ambient Temperature	-25 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Plastic
Button Colour	White (Upper), Black (Lower)
Colour	Clear
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Clear
Lamp Type	Built-in LED
Legend	No Text
Light Blocks Type	LED Block
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
