Specifications

Contacts	1NO + 1NC
Rated Voltage AC (V)	230
LED Block Rated Voltage	230 VAC
Upper/Lower Button Text	No Text/No Text
Bezel Material	Plastic
Product Type	Double Pushbutton Kit
Brand	ABB
Actuator Type	Flush/Flush
Ambient Temperature	-25 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Plastic
Button Colour	Green (Upper), Red (Lower)
Colour	Clear
Contact Configuration	1NO+1NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Clear
Lamp Type	Built-in LED
Legend	No Text
Light Blocks Type	LED Block
Mode of Operation	Momentary
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	230 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

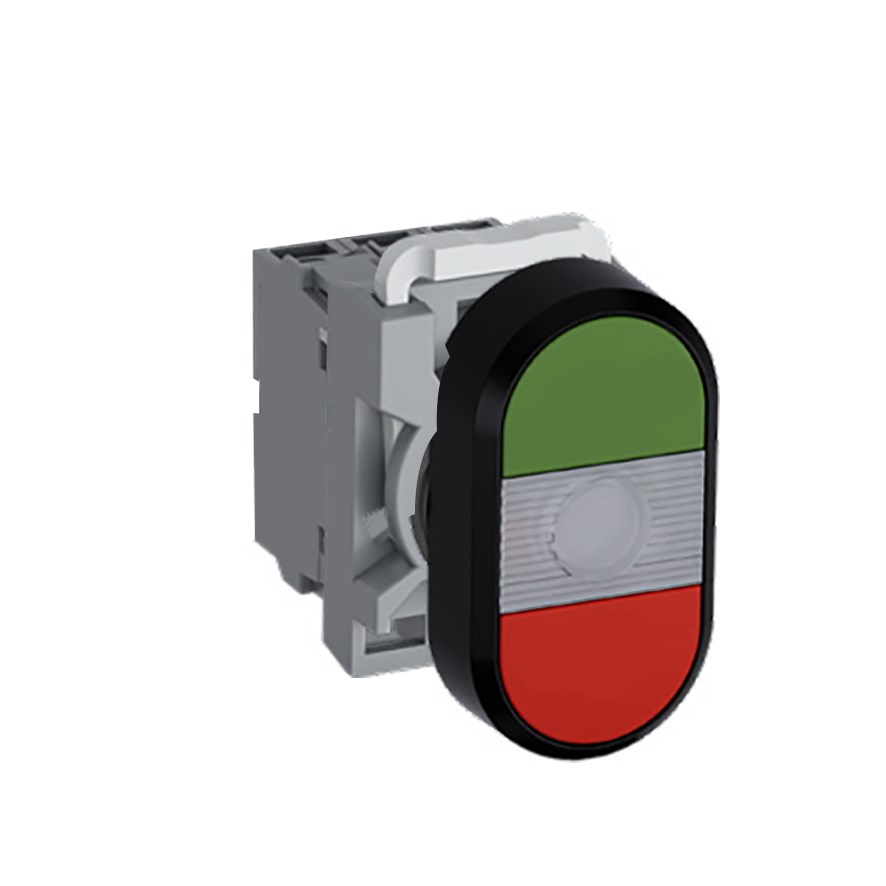

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/flush design. It features a green upper actuator and a red lower actuator, both of which are illuminated. The clear indicator does not have any text. The kit includes an integrated white LED and operates on 230 V AC power. It has 1 normally open (NO) contact and 1 normally closed (NC) contact. The pushbutton kit is part of a modular plastic range and has an IP66 rating for the front panel and an IP20 rating for the terminals.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPDIFCGR711 Illuminated Double Pushbutton Kit Flush/Flush Momentary Clear Green/Red 230VAC/DC 1NO+1NC

Product Code: MPDIFCGR711
