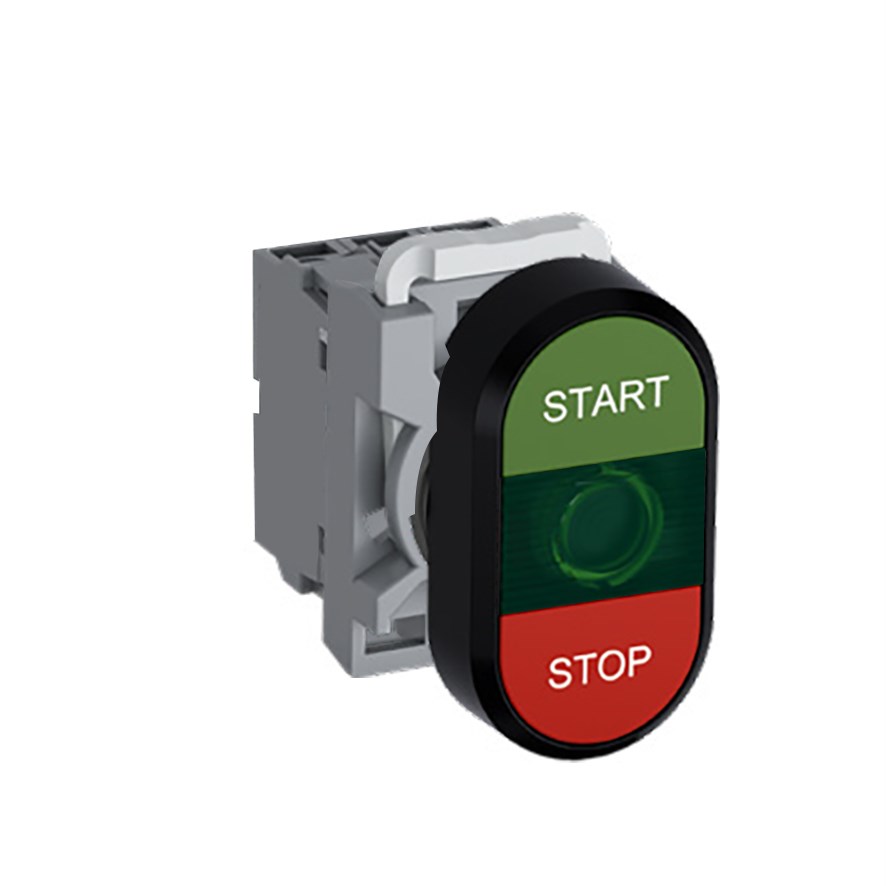

ABB MPDIFGGRS611 Illuminated Double Pushbutton Kit Flush/Flush Momentary Green Start/Stop Green/Red 220VDC 1NO+1NC

Product Code: MPDIFGGRS611

  • Rated for 220 VDC, IP66/IP20 protection.
  • Operates in -25 to 70°C environment.
  • Green LED illumination with flush actuator.
  • Durable plastic bezel, fits 22 mm cutout.
  • Suitable for mining and heavy industry use.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage DC (V) 220
LED Block Rated Voltage 220 VDC
Upper/Lower Button Text START/STOP
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/flush design. It features a green upper actuator for starting and a red lower actuator for stopping. The kit also includes a green indicator with text. The integrated LED is green and operates at 220 V DC. The contact configuration is 1NO+1NC. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
