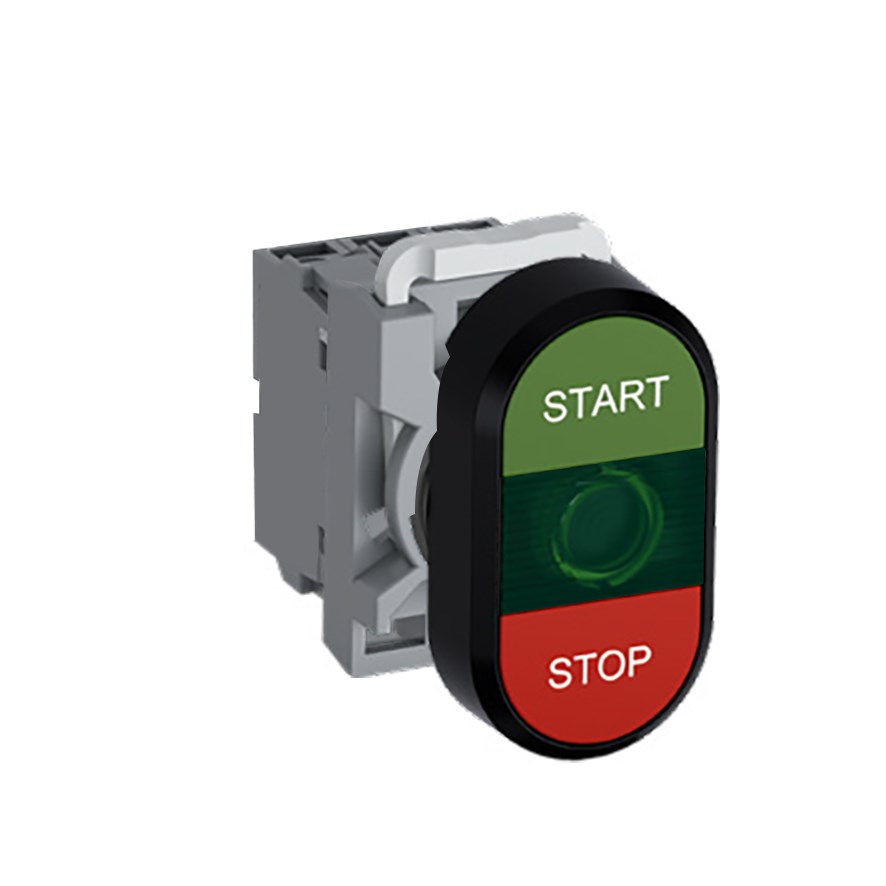

ABB MPDIFGGRS711 Illuminated Double Pushbutton Kit Flush/Flush Momentary Grn Start/Stop Green/Red 230VAC 1NO+1NC

Product Code: MPDIFGGRS711

  • Illuminated pushbutton with green LED
  • IP66 front protection for harsh environments
  • Operates at 230 VAC/DC with 10A thermal current
  • Versatile 1NO+1NC contact configuration
  • Suitable for mining, construction, heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Upper/Lower Button Text START/STOP
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Kit is a momentary switch with a flush/flush design. It features a green upper actuator for start and a red lower actuator for stop. The kit also includes a green indicator with text. The pushbutton has an integrated green LED and operates at 230 V AC. It has 1 normally open (NO) contact and 1 normally closed (NC) contact. The kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
