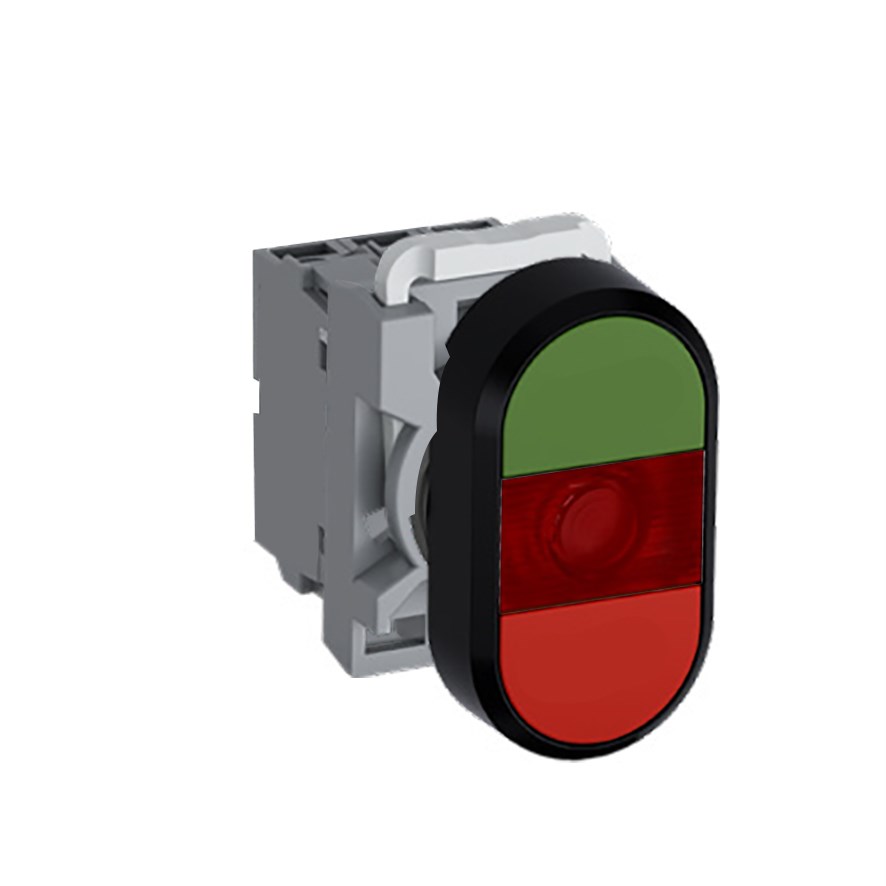

ABB MPDIFRGR111 Illuminated Double Pushbutton Kit Flush/Flush Red Green/Red 24VAC/DC 1NO+1NC LED Block

Product Code: MPDIFRGR111

  • 24 VAC/DC illuminated pushbutton
  • IP66 front protection
  • Operates in -25 to 70°C range
  • Green/red button with built-in LED
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24VAC/DC
Upper/Lower Button Text No Text/No Text
Bezel Material Plastic
Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Red
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type Built-in LED
LED Colour Red
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Double Pushbutton Red Indicator is a versatile and functional product designed for engineers. It operates on 24VAC/DC power and features an upper-green and lower-red flush design. The pushbutton has 1 normally open (NO) and 1 normally closed (NC) contact, providing flexibility in its use. This product does not include any texts. It comes as a kit that includes the operator, contact block, and contact block holder. Made from modular plastic, this product is durable and reliable for various applications.
