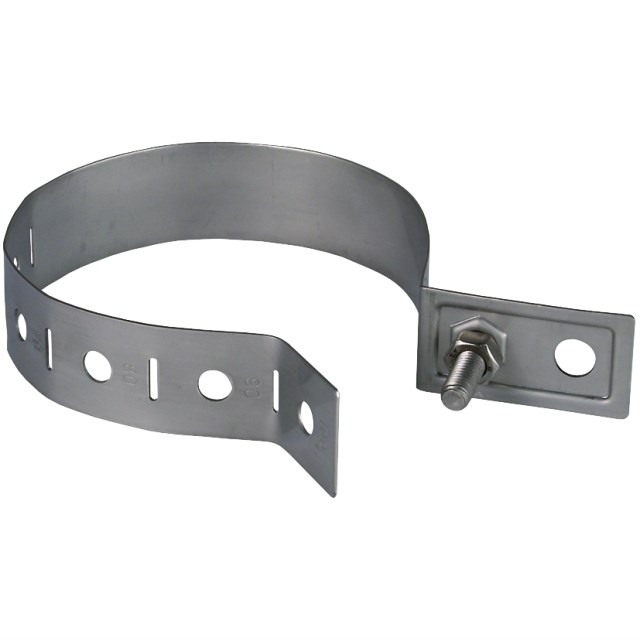

DEHN 423019 Downpipe Clamp 60-100mm 10.5mm M8 x 25mm Screw Stainless Steel

Product Code: 423019

  • M8 x 25 mm screw connection
  • Stainless steel for durability
  • Clamping range: 60-100 mm
  • Handles lightning current up to 100 kA
  • Complies with EN 62561-1, IEC 62305 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 337W
Suitable For Earthing
Weight (kg) 0.109
Class (Lightning Current Carrying Capability) (kA) 100
Length (mm) 337
Reference No. 423019
Fixing Hole Ø (mm) 10.5
Type Equipotential Bonding
Clamping Range (mm) 60 - 100
Surface Protection Untreated
Clamping Range Rd/Rd (mm) 60 - 100
Product Type Downpipe Clamp
Brand DEHN
Clamping Range 60-100 mm
Connection Type M8 x 25 mm Screw
Finish Untreated
Length 337 mm
Lightning Current Carrying Capability 100 kA
Material Stainless Steel
Screw Size M8 x 25mm
Size 10.5 mm
Standards and Approvals EN 62561-1, IEC 62305
Suitable For Use With Earthing Rods
Weight 0.109 kg
Width 337 mm
