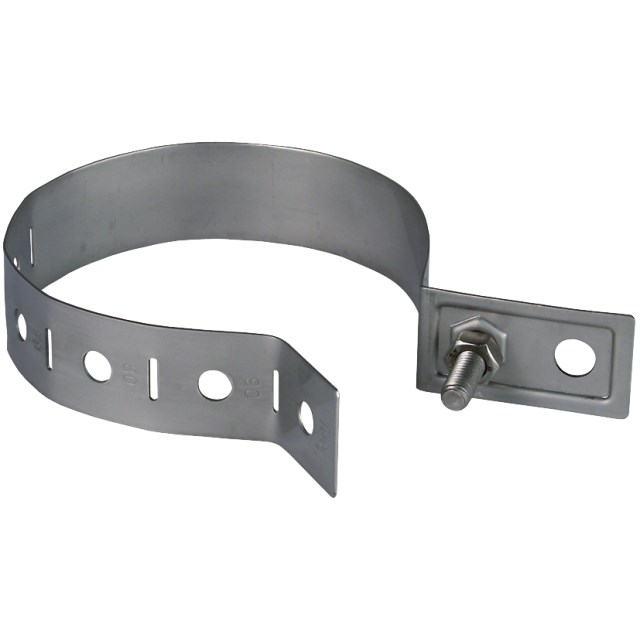

DEHN 423029 Downpipe Clamp 60-150mm 10.5mm M8 x 25mm Screw Stainless Steel

Product Code: 423029

  • M8 x 25 mm screw connection
  • Stainless steel construction
  • Clamping range: 60-150 mm
  • Lightning current capacity: up to 100 kA
  • Complies with EN 62561-1, IEC 62305 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 494W
Suitable For Earthing
Weight (kg) 0.151
Class (Lightning Current Carrying Capability) (kA) 100/50
Length (mm) 494
Reference No. 423029
Fixing Hole Ø (mm) 10.5
Type Equipotential Bonding
Clamping Range (mm) 60 - 150
Surface Protection Untreated
Clamping Range Rd/Rd (mm) 60 - 150
Product Type Downpipe Clamp
Brand DEHN
Clamping Range 60-150 mm
Connection Type M8 x 25 mm Screw
Finish Untreated
Length 494 mm
Lightning Current Carrying Capability 50 kA, 100 kA
Material Stainless Steel
Screw Size M8 x 25mm
Size 10.5 mm
Standards and Approvals EN 62561-1, IEC 62305
Suitable For Use With Earthing Rods
Weight 0.151 kg
Width 494 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
