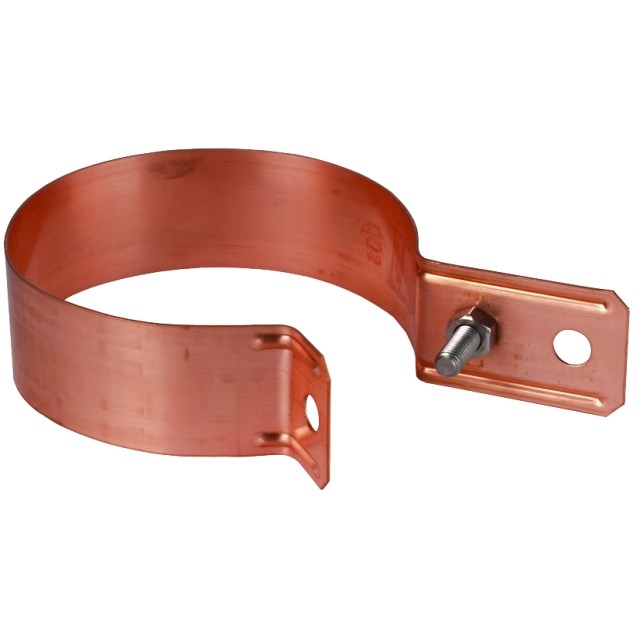

DEHN 420127 Downpipe Clamp 120mm 11mm M8 x 25mm Screw Copper

Product Code: 420127

  • M8 x 25 mm screw connection
  • Supports earthing rods
  • Handles lightning current up to 100 kA
  • Copper material, untreated finish
  • Complies with EN 62561-1, IEC 62305-3 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 40H
Suitable For Earthing
Weight (kg) 0.186
Class (Lightning Current Carrying Capability) (kA) 100
Reference No. 420127
Fixing Hole Ø (mm) 11
Type Equipotential Bonding
Clamping Range (mm) 120
Surface Protection Untreated
Clamping Range Rd/Rd (mm) 120
Product Type Downpipe Clamp
Brand DEHN
Clamping Range 120 mm
Connection Type M8 x 25 mm Screw
Finish Untreated
Height 40 mm
Lightning Current Carrying Capability 100 kA
Material Copper
Screw Size M8 x 25mm
Size 11 mm
Standards and Approvals EN 62561-1, IEC 62305-3
Suitable For Use With Earthing Rods
Weight 0.186 kg
