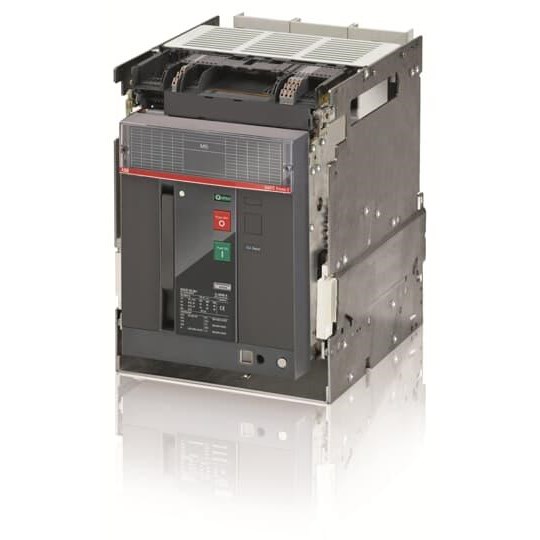

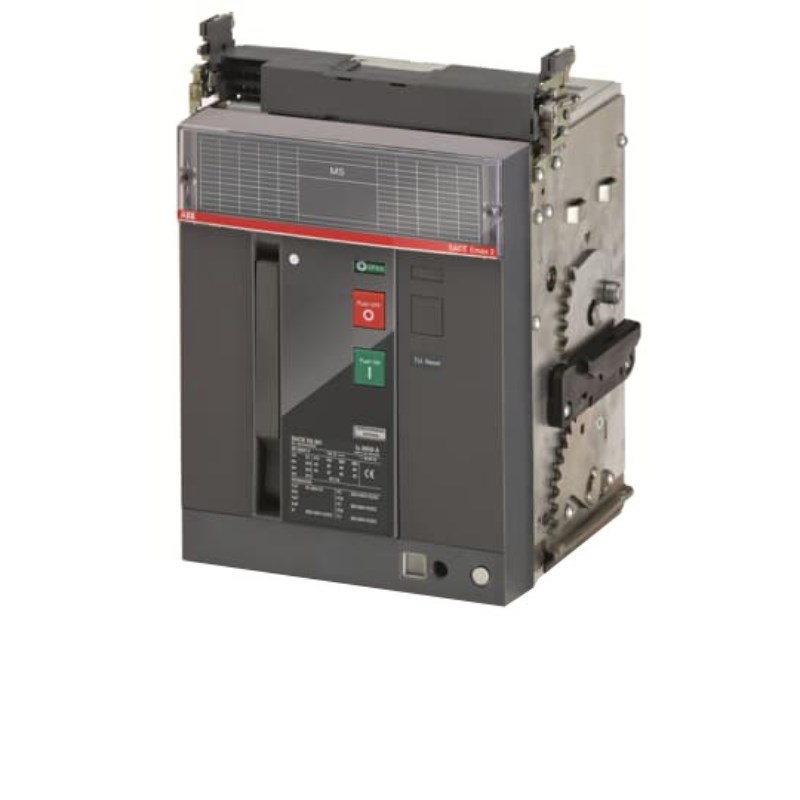

ABB 1SDA073497R1 Switch Disconnector 2000A 3-P W Version

Product Code: 1SDA073497R1

  • Non-auto ACB with 2000 A rating
  • Impulse withstand voltage of 12 kV
  • Insulation voltage rated at 1000 V
  • Protects with IP30 enclosure
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 425H x 317W x 383D
No. of Poles 3P
Power Loss (W) 450
Rated Current (A) 2000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 2000
Rated Short-time Withstand Current - Icw (kA/3s) 66
Poles 3P
Current Rating (A) 2000
AC Voltage (V) 690
Icw (kA/1s) - Short-time Withstand Current Rating 85
Icw (kA/3s) - Short-time Withstand Current Rating 66
Iu - Uninterrupted Current Rating (A) 2000
Rated Voltage (V) 690
Product Type Switch Disconnector
Brand ABB
Component Type Withdrawable
Current Type AC
Degree of Protection IP30
Depth 383 mm
Height 425 mm
Number of Poles 3
Power Loss 450 W
Rated Current 2000 A
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Standards and Approvals IEC 309
Version Withdrawable
Weight 48 kg
Width 317 mm
