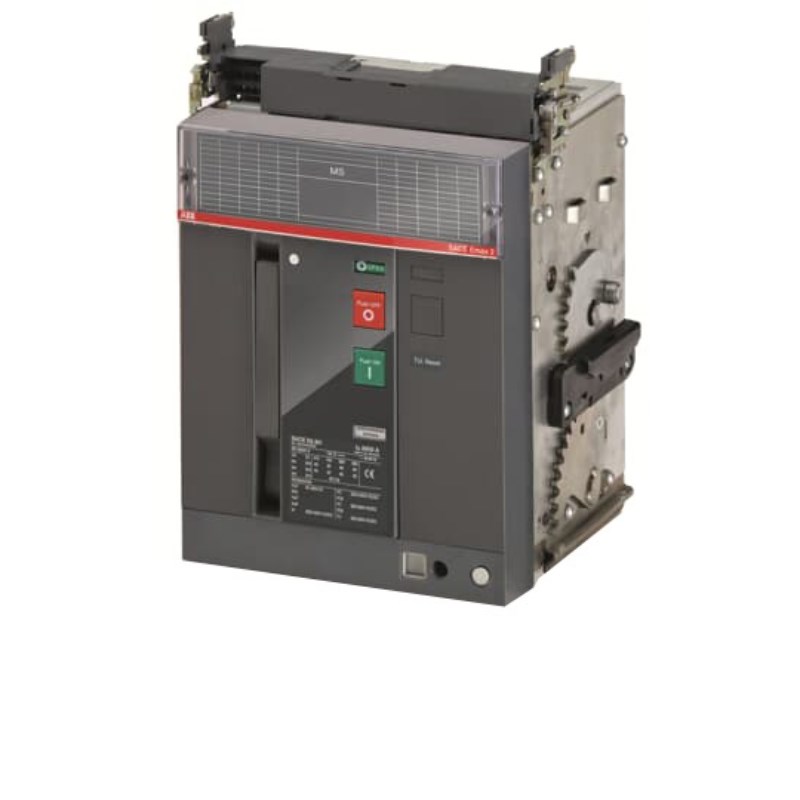

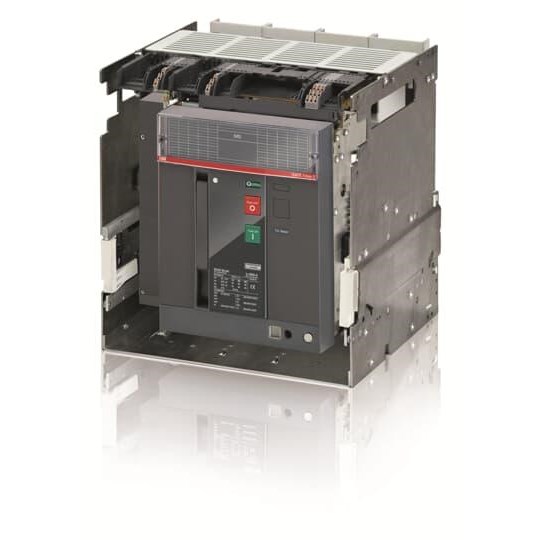

ABB 1SDA073499R1 Switch Disconnector 2500A 3-P W Version

Product Code: 1SDA073499R1

  • Non-automatic ACB, 2500 A capacity
  • Withstands impulse voltage of 12 kV
  • Rated insulation voltage at 1000 V
  • IP30 protection with 3 poles
  • Compact size: 317x425x383 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 425H x 317W x 383D
No. of Poles 3P
Power Loss (W) 550
Rated Current (A) 2500
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 2500
Rated Short-time Withstand Current - Icw (kA/3s) 66
Rated Voltage (V) 690
Poles 3P
Current Rating (A) 2500
AC Voltage (V) 690
Icw (kA/1s) - Short-time Withstand Current Rating 85
Icw (kA/3s) - Short-time Withstand Current Rating 66
Iu - Uninterrupted Current Rating (A) 2500
Product Type Switch Disconnector
Brand ABB
Component Type Withdrawable
Current Type AC
Degree of Protection IP30
Depth 383 mm
Height 425 mm
Number of Poles 3
Power Loss 550 W
Rated Current 2500 A
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Standards and Approvals IEC 309
Version Withdrawable
Weight 48 kg
Width 317 mm
