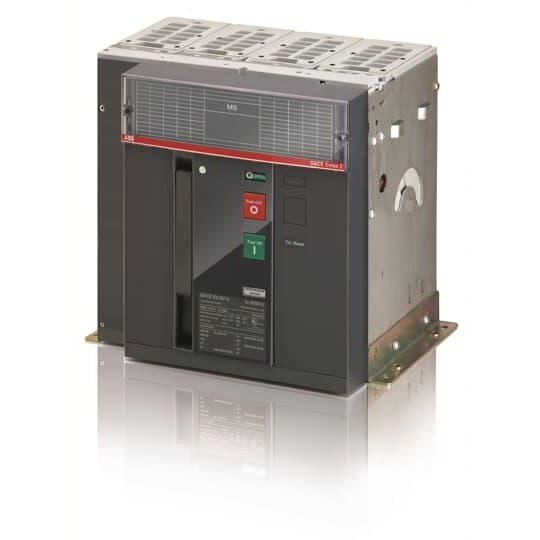

When it comes to selecting a reliable non-automatic air circuit breaker (ACB) for industrial and commercial applications, understanding the specifications is crucial. This ACB offers robust performance with a rated current of 2000 A, making it suitable for heavy-duty electrical systems. It operates efficiently at a rated voltage of 600 VAC, ensuring compatibility with various power distribution networks.
The device boasts a rated insulation voltage of 635 V, providing an extra layer of safety against electrical faults. Power efficiency is also noteworthy with a power loss of just 250 W, contributing to reduced operational costs over time. Designed as a four-pole unit, this ACB ensures comprehensive protection across all phases in three-phase systems.
In terms of physical dimensions, the unit measures 366 mm in width, 371 mm in height, and has a depth of 270 mm. These compact dimensions allow for easy integration into existing switchgear assemblies without demanding excessive space. Despite its sturdy construction and high capacity, the breaker maintains an IP30 degree of protection. This rating indicates that while it's protected against solid objects larger than 2.5 mm—such as tools or wires—it should be installed in environments where exposure to dust and moisture is minimal.
Weighing in at 45 kg, this ACB strikes an excellent balance between durability and manageability during installation or maintenance activities. The product adheres strictly to UL standards and approvals which assures users of its compliance with internationally recognized safety benchmarks.
Overall, this non-automatic ACB stands out as a dependable choice for those needing efficient current interruption capabilities combined with ease-of-use features tailored for mid-sized industrial setups or commercial buildings seeking reliable electrical infrastructure solutions without unnecessary complexity or cost overheads.
