Specifications

Dimensions (mm)	551W x 425H x 383D
Size of Frame	E4.2
Maximum Operational Voltage AC (V)	690
No. of Poles	4
Power Loss (W)	900
Rated Current (A)	4000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	4000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Uninterrupted Current - Iu (A)	4000
Breaking Capacity 415V AC - Icu (kA)	100
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	85
EAN	8015644773953
Poles	4P
Breaking Capacity (kA)	100 @415V AC
Current Rating (A)	4000
AC Voltage (V)	690
Frame	E4.2
Icw (kA/1s) - Short-time Withstand Current Rating	85
Iu - Uninterrupted Current Rating (A)	4000
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	4000
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Withdrawable
Degree of Protection	IP30
Depth	383 mm
Height	425 mm
Interlockable	Yes
Number of Poles	4
Power Loss	900 W
Rated Current	4000 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Version	Withdrawable
Weight	74 kg
Width	551 mm

Description

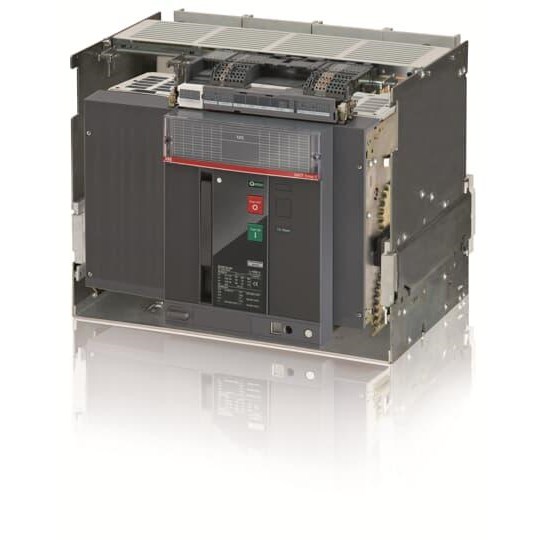

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E4.2H/MS 4000 FOUR-POLE
