Specifications

Size of Frame	E6.2
No. of Poles	3
Rated Current (A)	6300
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Uninterrupted Current - Iu (A)	6300
EAN	8015644778538
Poles	3P
Current Rating (A)	6300
AC Voltage (V)	690
Frame	E6.2
Iu - Uninterrupted Current Rating (A)	6300
Main Circuit Electrical Connection	Bolt Connection
Product Type	Fixed Part Withdrawable
Brand	ABB
Frame Size	E6.2
Height	425 mm
Length	383 mm
Number of Poles	3
Rated Current	6300 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 VAC
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Suitable For Use With	E6.2
Terminal Type	Horizontal Rear Spread
Tightening Torque	70 N-m
Width	803 mm

Description

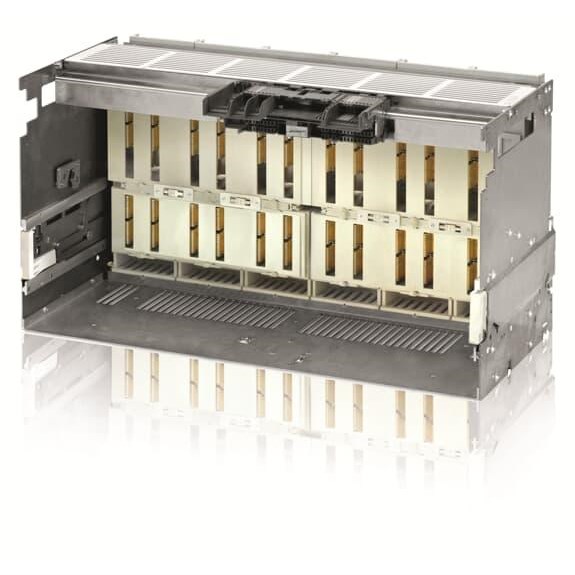

FIXED PART WITHDRAWABLE FOR C.BREAKER SACE EMAX2 E6.2 6300 THREE-POLE WITH REAR HORIZONTAL TERMINALS (VERS. X)
