Specifications

Dimensions (mm)	888W x 371H x 270D
Size of Frame	E6.2
Maximum Operational Voltage AC (V)	690
No. of Poles	4
Power Loss (W)	483
Rated Current (A)	5000
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	5000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	100
Rated Uninterrupted Current - Iu (A)	5000
Breaking Capacity 415V AC - Icu (kA)	100
Type	Main Switch
Design of Control Element	Push Button
Rated Short-Time Withstand Current - Icw (kA)	100
EAN	8015644773151
Poles	4P
Breaking Capacity (kA)	100 @415V AC
Current Rating (A)	5000
AC Voltage (V)	690
Frame	E6.2
Icw (kA/1s) - Short-time Withstand Current Rating	100
Iu - Uninterrupted Current Rating (A)	5000
Suitable For	Distribution Board Installation
Rated Operational Current AC-23A 380-415V (A)	5000
Main Circuit Electrical Connection	Bolt Connection
Product Type	Switch Disconnector
Brand	ABB
Component Type	Fixed
Degree of Protection	IP30
Depth	270 mm
Height	371 mm
Interlockable	Yes
Number of Poles	4
Power Loss	483 W
Rated Current	5000 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Terminal Type	Bolt
Tightening Torque	70 N-m
Version	Fixed
Weight	125 kg
Width	888 mm

Description

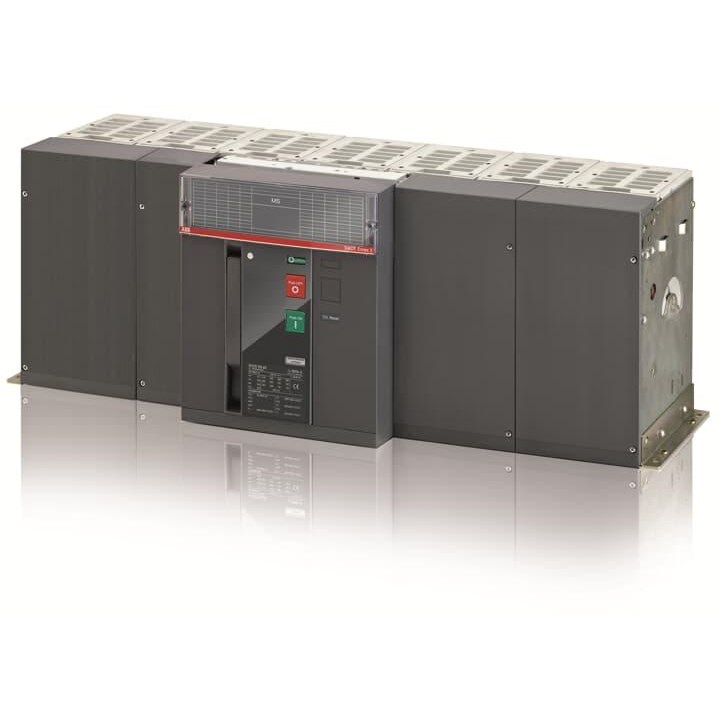

C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E6.2H/MS 5000 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL
