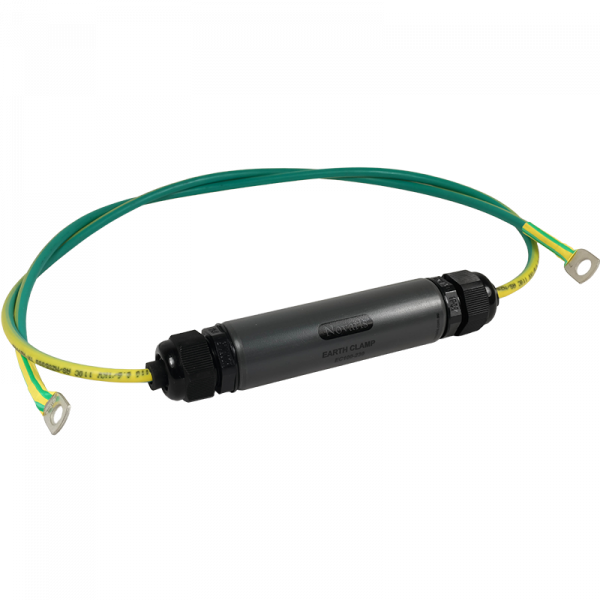

Novaris EC20-350 Earth Clamp 20kA 350VDC 6sq-mm Flying Leads 20mm W 60mm H IP65

Product Code: EC20-350

Supports up to 350 VDC, ensuring reliable performance.
Handles high current with a rating of 20 kA.
IP65 protection for dust and water resistance.
Compact design with dimensions of 20mm x 60mm.
Operates in temperatures from -40 to 70°C.

Specifications

Product Type	Earth Clamp
Brand	NOVARIS
Capacitance	<0.8 pF
Connection Type	6 sq-mm Flying Leads
Degree of Protection	IP65
Height	60 mm
Humidity	5-95%
Operational Temperature	-40 to 70 deg C
Rated Current	20 kA
Rated Voltage	350 VDC
Voltage Protection Level	<0.85 kV
Weight	160 g
Width	20 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
