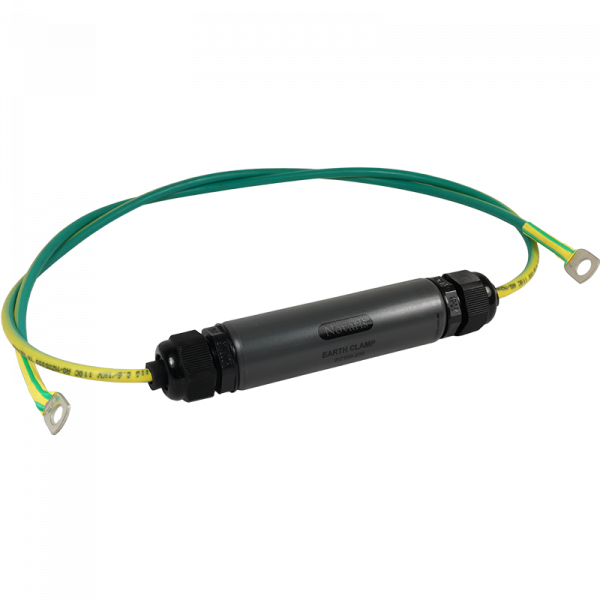

Novaris EC20-600 Earth Clamp 20kA 600VDC 6sq-mm Flying Leads 20mm W 60mm H IP65

Product Code: EC20-600

  • Handles up to 600 VDC & 20 kA current
  • IP65 rating for dust & water resistance
  • Operates from -40 to 70°C efficiently
  • Compact size: 20mm width, 60mm height
  • Lightweight at only 160g
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Earth Clamp
Brand NOVARIS
Capacitance <0.8 pF
Connection Type 6 sq-mm Flying Leads
Degree of Protection IP65
Height 60 mm
Humidity 5-95%
Operational Temperature -40 to 70 deg C
Rated Current 20 kA
Rated Voltage 600 VDC
Voltage Protection Level <1.2 kV
Weight 160 g
Width 20 mm
