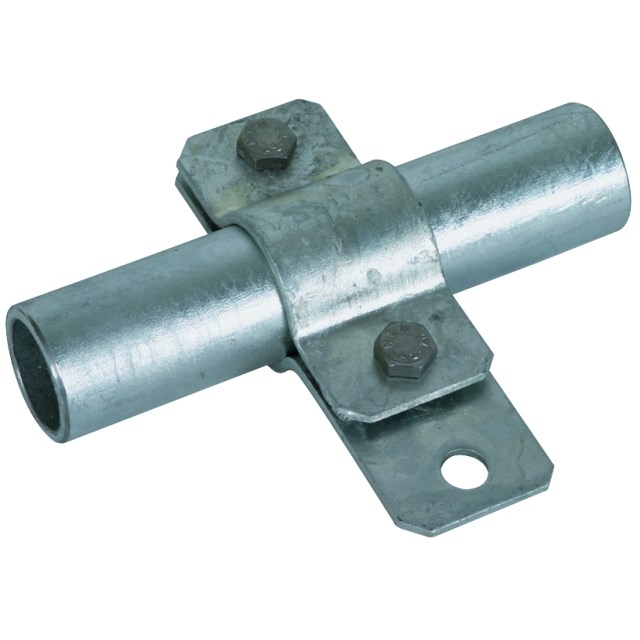

DEHN 410038 Earthing Pipe Clamp 17mm 11mm M10 x 25mm Screw Steel

Product Code: 410038

  • M10 x 25 mm screw connection
  • Complies with EN and IEC standards
  • Suitable for earthing rods
  • Handles up to 100 kA lightning current
  • Hot dip galvanized steel finish
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 110W x 40D
Suitable For Earthing
Weight (kg) 0.211
Class (Lightning Current Carrying Capability) (kA) 100
Reference No. 410038
No. of Conductors 1
Type Equipotential Bonding
Clamping Range (mm) 17
Surface Protection Hot-dip Galvanized
Clamping Range Rd/Rd (mm) 17
Product Type Earthing Pipe Clamp
Brand DEHN
Clamping Range 17 mm
Connection Type M10 x 25 mm Screw
Depth 40 mm
Finish Hot Dip Galvanized
Lightning Current Carrying Capability 100 kA
Material Steel
Number of Conductors 1
Screw Size M8 x 20mm
Size 11 mm
Standards and Approvals EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), IEC 62305-3
Suitable For Use With Earthing Rods
Weight 0.211 kg
Width 110 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
