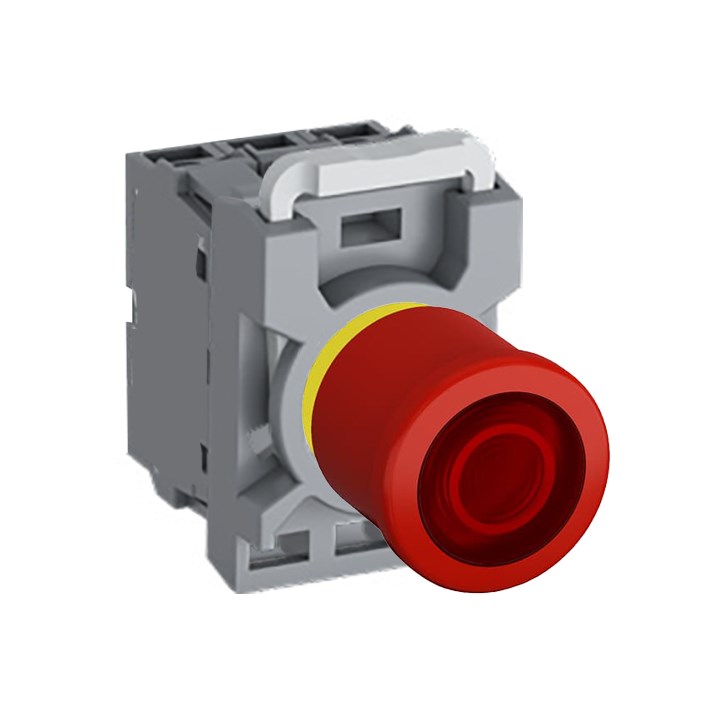

ABB MPEI4P420 Emergency Stop Pushbutton Kit Illuminated 2NO Red Pull Plastic 230VAC

Product Code: MPEI4P420

  • 230 VAC illuminated pushbutton
  • Red plastic design for visibility
  • Operates in -25 to 70°C range
  • IP20/IP65 protection ratings
  • Pull release with 2NO contacts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
No. of Auxiliary Contacts 2NO
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 2NO
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
