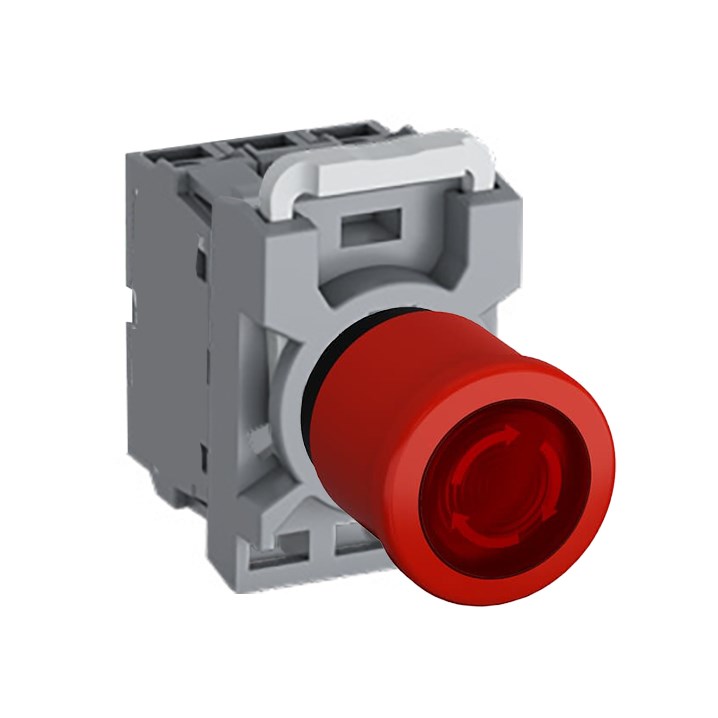

ABB MPEI4T311 Emergency Stop Pushbutton Kit Illuminated 1NO+1NC Red Plastic 220VDC

Product Code: MPEI4T311

  • Illuminated red pushbutton for clear visibility
  • Operates in temps from -25 to 70°C
  • IP20/IP65 protection against dust and water
  • Rated voltage of 220 VDC, insulation at 690 V
  • Contact config: 1NO+1NC for versatile use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Auxiliary Contacts 1NO+1NC
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
