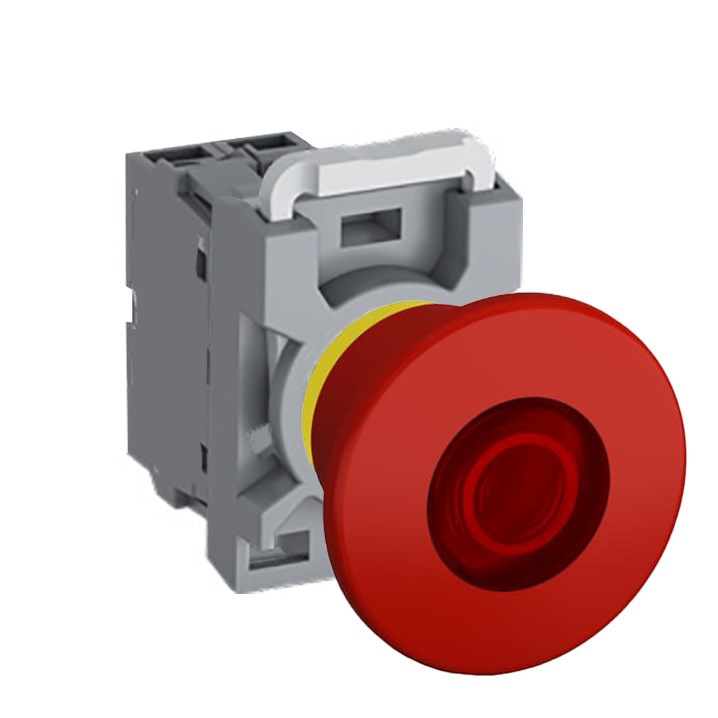

ABB MPEI6P310 Emergency Stop Pushbutton Kit Illuminated 1NO Red Pull Plastic 220VDC

Product Code: MPEI6P310

  • Operates at 220 VDC with red illumination
  • Durable plastic construction
  • Wide temp range: -25 to 70°C
  • High protection: IP20, IP65 rated
  • Meets multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 1NO
Degree of Protection IP20, IP65
Function Pull Release
Illumination Illuminated
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
