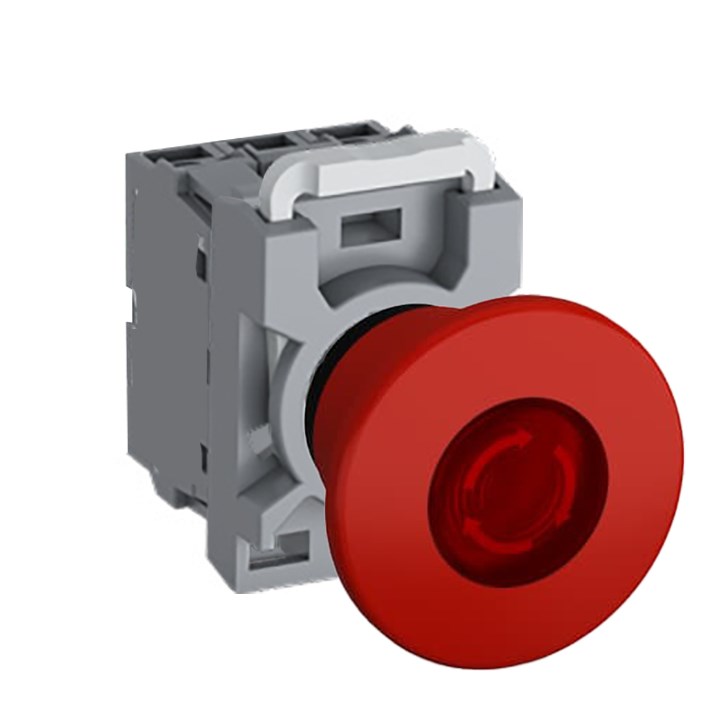

ABB MPEI6T002 Emergency Stop Pushbutton Kit Illuminated 2NC Red Plastic 12VDC

Product Code: MPEI6T002

  • Operates at 12 VDC with red illumination
  • Durable plastic construction
  • Wide temp range: -25 to 70°C
  • IP20/IP65 protection ratings
  • Compliant with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
LED Block Rated Voltage 12 VDC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 2NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VDC
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
