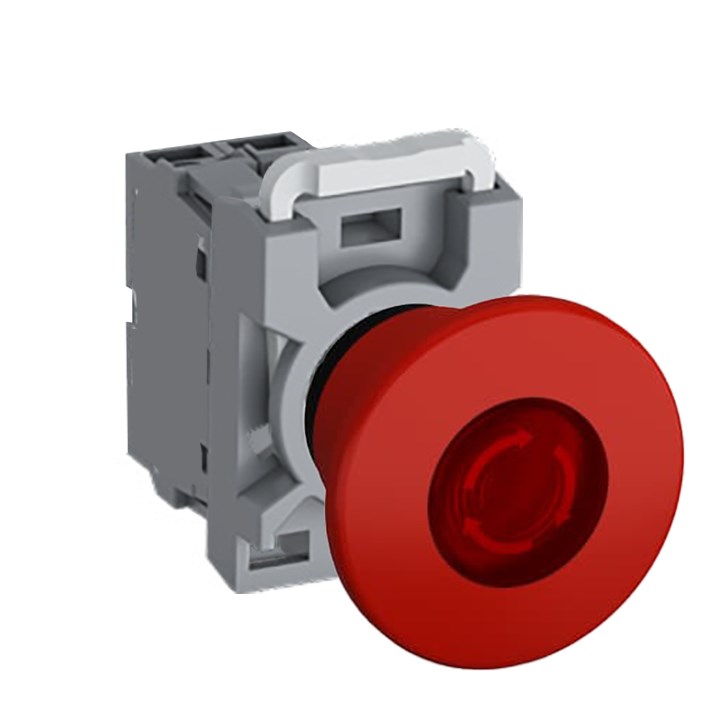

ABB MPEI6T401 Emergency Stop Pushbutton Kit Illuminated 1NC Red Plastic 230VAC

Product Code: MPEI6T401

  • 230 VAC illuminated red pushbutton
  • Durable plastic construction
  • Operates in -25 to 70°C range
  • High protection: IP20, IP65 rated
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
No. of Auxiliary Contacts 1NC
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
