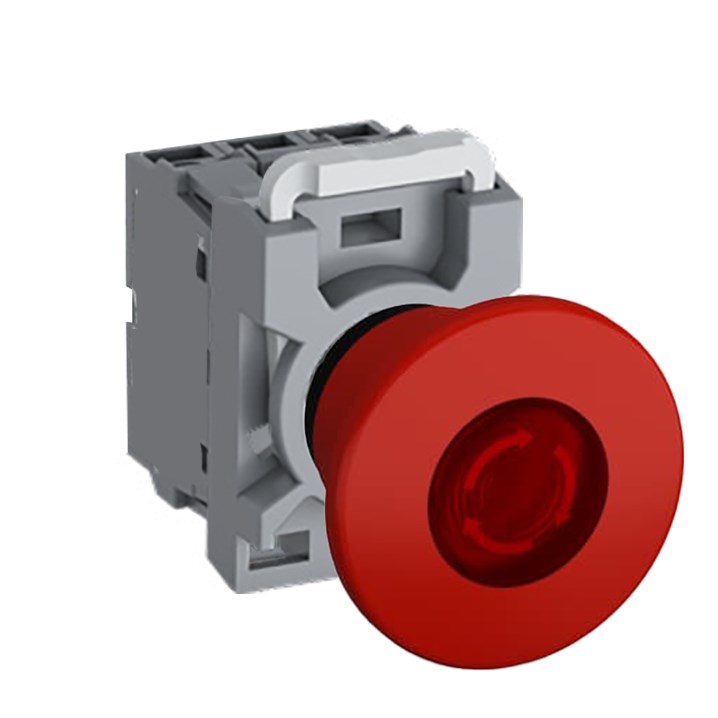

ABB MPEI6T411 Emergency Stop Pushbutton Kit Illuminated 1NO+1NC Red Plastic 230VAC

Product Code: MPEI6T411

  • Illuminated red pushbutton for clear visibility
  • Suitable for 230 VAC applications
  • Robust plastic design, IP20/IP65 rated
  • Operates in -25 to 70°C temperature range
  • Compliant with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
No. of Auxiliary Contacts 1NO+1NC
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
