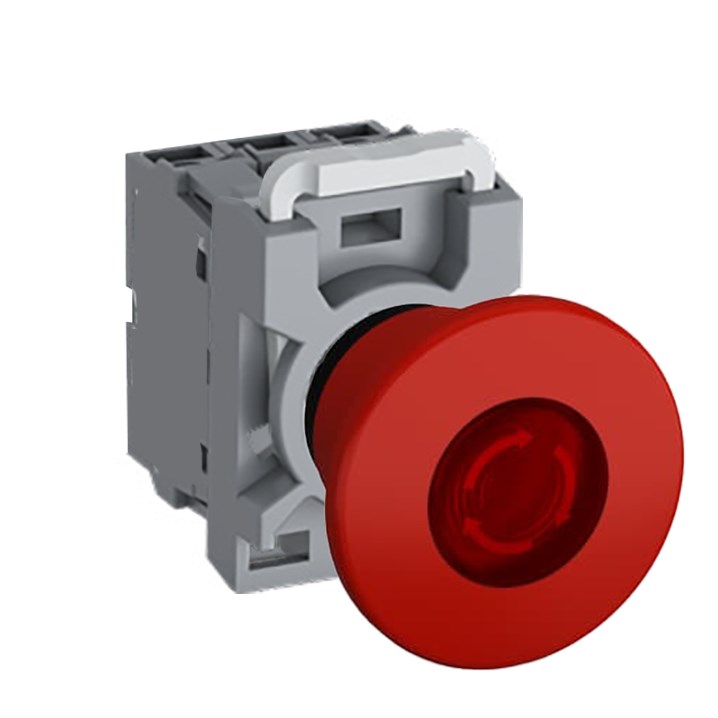

ABB MPEI6T120 Emergency Stop Pushbutton Kit Illuminated 2NO Red Plastic 24VAC/DC

Product Code: MPEI6T120

  • Illuminated red pushbutton for visibility
  • Operates at 24 VAC/VDC with plastic build
  • Wide temp range: -25 to 70°C
  • High protection: IP20, IP65 rated
  • Meets multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
No. of Auxiliary Contacts 2NO
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 60mm
Colour Red
Contact Configuration 2NO
Degree of Protection IP20, IP65
Function Twist Release
Illumination Illuminated
Lamp Type Built-in LED
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/VDC
Release Method Twist Release
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
