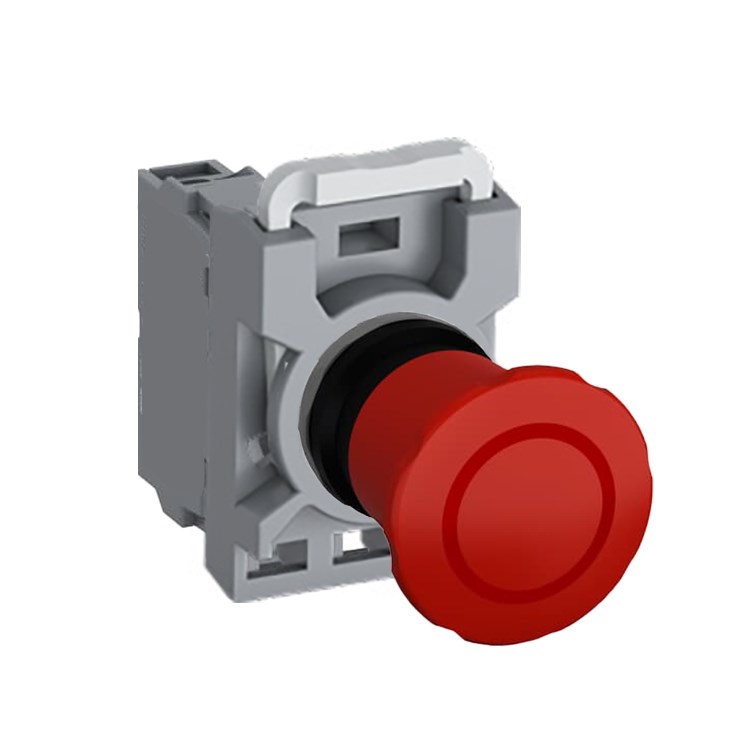

ABB MPEN4P01 Emergency Stop Pushbutton Kit Non-Illuminated 1NC Red Pull Plastic

Product Code: MPEN4P01

  • Non-illuminated red pushbutton
  • Durable plastic construction
  • Operates in -25 to 70°C range
  • IP20/IP65 protection rating
  • Rated insulation voltage of 690V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Mushroom Diameter (mm) 40
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Emergency Stop Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Colour Red
Contact Configuration 1NC
Degree of Protection IP20, IP65
Function Pull Release
Illumination Non-Illuminated
Material Plastic
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Release Method Pull
Standards and Approvals CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

Description

This Non-Illuminated Emergency Stop Pushbutton is designed for use in emergency situations. It features a red colour and has a 40mm diameter. The pushbutton has a 1NC (Normally Closed) configuration and can be released by pulling it. It is part of the Modular Plastic range, ensuring durability and reliability.
