Specifications

Contacts	1NO + 1NC
No. of Auxiliary Contacts	1NO+1NC
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic

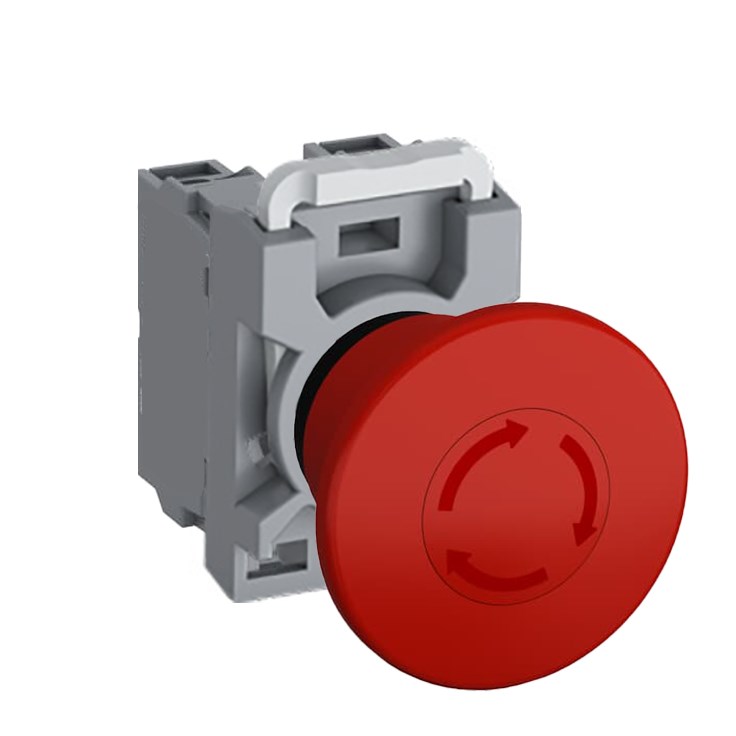

Product Type	Emergency Stop Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 60mm
Colour	Red
Contact Configuration	1NO+1NC
Degree of Protection	IP20, IP65
Function	Twist Release
Illumination	Non-Illuminated
Material	Plastic
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Release Method	Twist Release
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
