Specifications

Contacts	2NC
No. of Auxiliary Contacts	2NC
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic

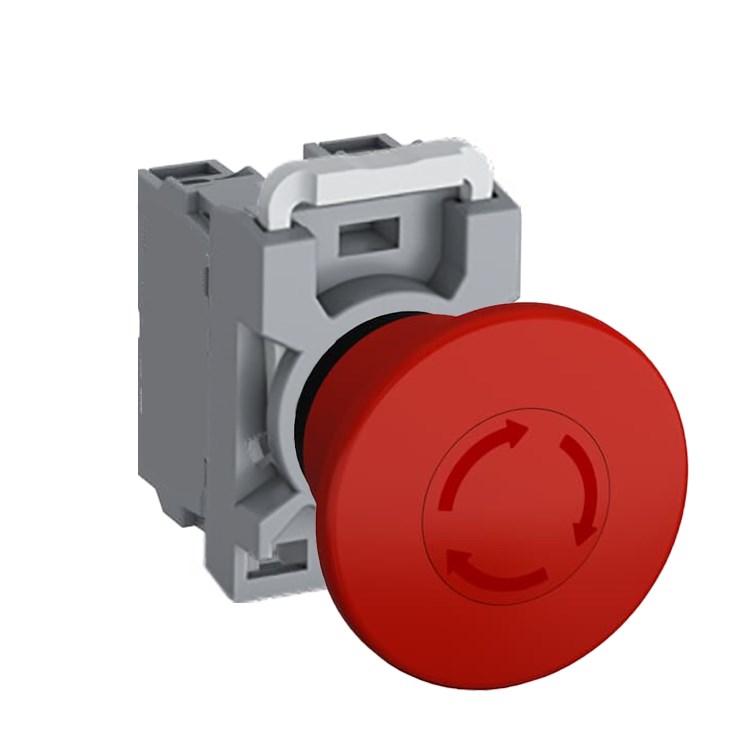

Product Type	Emergency Stop Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 60mm
Colour	Red
Contact Configuration	2NC
Degree of Protection	IP20, IP65
Function	Twist Release
Illumination	Non-Illuminated
Material	Plastic
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Release Method	Twist Release
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508
