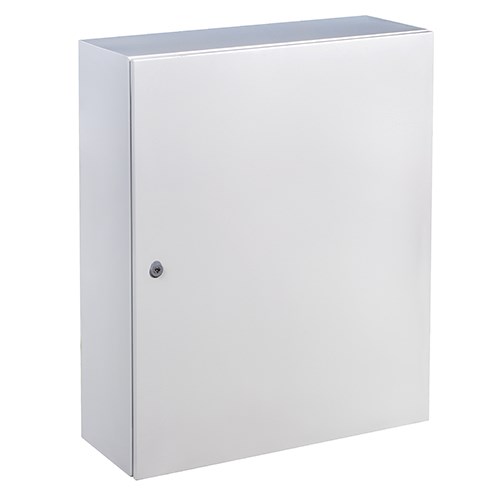

IDE MSB108025G Mild Steel Enclosure Cold Rolled Steel 800W 1000H 250D RAL7035 Light Grey IP66

Product Code: MSB108025G

  • IP66 for robust dust and water protection
  • Cold rolled steel for enhanced durability
  • Supports up to 390 kg total load capacity
  • UV-protected textured polyester paint finish
  • Reversible single/double door with secure lock
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 1000H x 800W x 250D
No. of Locks 3 points
Mounting Plate Size (mm) 970W x 750H
No. of Hinges 3
Thickness (mm) Enclosure: 1.5 Door: 2 Cable entry lid: 2
Usable Internal Space (mm) 950H x 750W x 229D
Weight (kg) 50.9
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
EAN 8431044491493
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 960H x 560W
Cable Entry (mm) 125H x 685W
Maximum Cabinet Load (kg) 390
Maximum Mounting Plate Load (kg) 350
Maximum Door Load (kg) 40
Certifications UL508A
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 685 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 250 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 1000 mm
Lock Type 5 mm Double-Bit Lock, (1) 3-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 390 kg
Maximum Door Load 40 kg
Maximum Mounting Plate Load 350 kg
Mounting Plate Size 750 mm H x 970 mm W x 2 mm D
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 3
Number of Locks 3
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 950 mm H x 750 mm W x 229 mm D
Wall Fixing Dimensions 960 mm H x 560 mm W
Weight 50.9 kg
Width 800 mm

Description

This mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, ensuring protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It features a 3-point locking rod and 3 hinges for secure closure. The injected polyurethane sealing gasket provides additional protection against environmental elements. With a cable entry of 140x700, this enclosure has dimensions of 1000Hx800Wx250Dmm, providing ample space for equipment storage.
