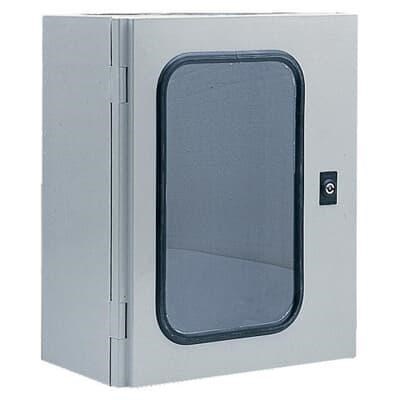

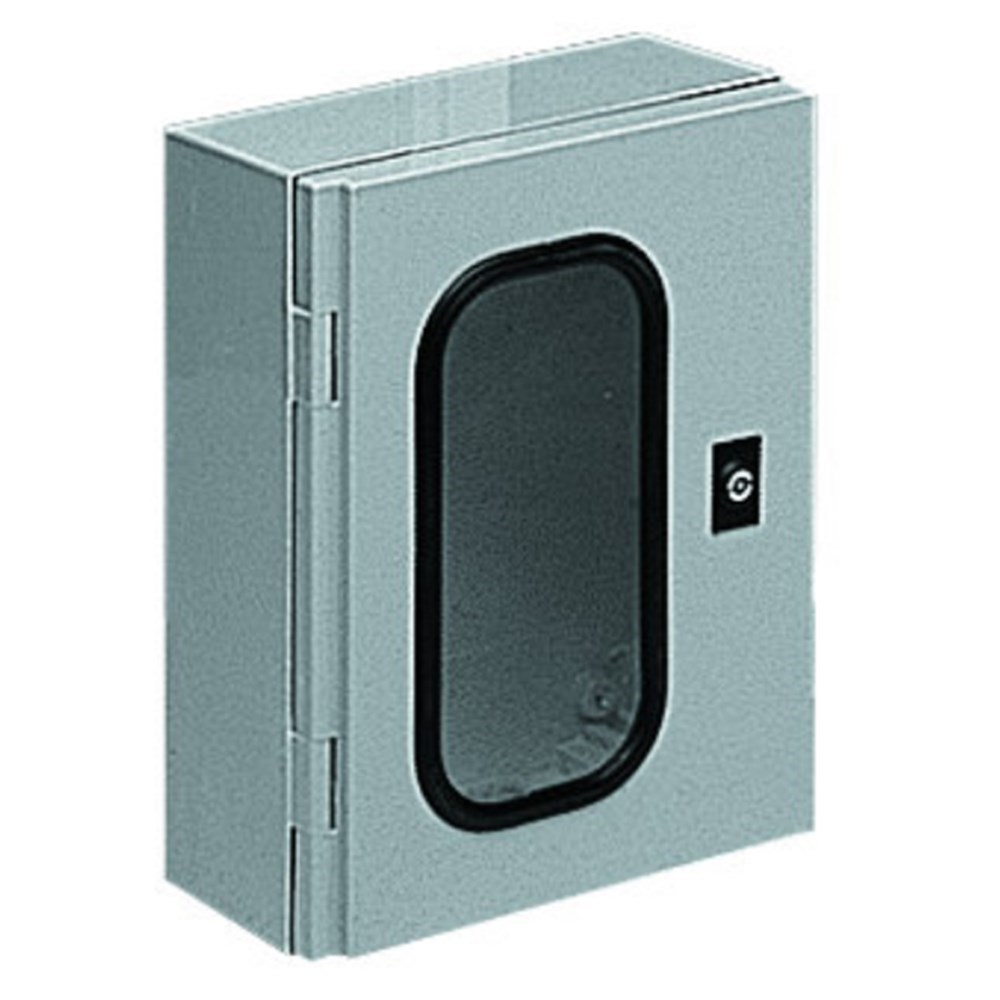

ABB ARIA54GD Polyester Cabinet Glazed 415W 515H 230D Glazed Door IP66

Product Code: ARIA54GD

  • IP66 rated for excellent protection
  • Wall-mounted design saves space
  • Compact size: 415x515x230 mm
  • Durable glazed polyester finish
  • Ideal for harsh industrial use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 515H x 415W x 230D
No. of Locks 3 Points
Product Type Polyester Cabinet
Brand ABB
Application Harsh external and heavy industry applications
Colour Glazed
Degree of Protection IP66
Depth 230 mm
Door Type Glazed Door
Height 515 mm
Mounting Type Wall
Number of Locks 3
Width 415 mm

Description

The Universal glass fibre reinforced polyester cabinet is designed for harsh external applications and heavy industry environments such as mining, shipyards, and marine/oil environments. It is made of grey RAL7035 glass fibre reinforced polyester material and features a glazed door with an IP66 rating. The cabinet has a central double bit 3-point locking system for added security. With a high temperature rating of up to 70°C continuous temperature, it can withstand extreme heat. Additionally, the cabinet is maintenance-free and corrosion resistant. It is suitable for both wall and pole mounting, measuring 515Hx415Wx230Dmm.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
