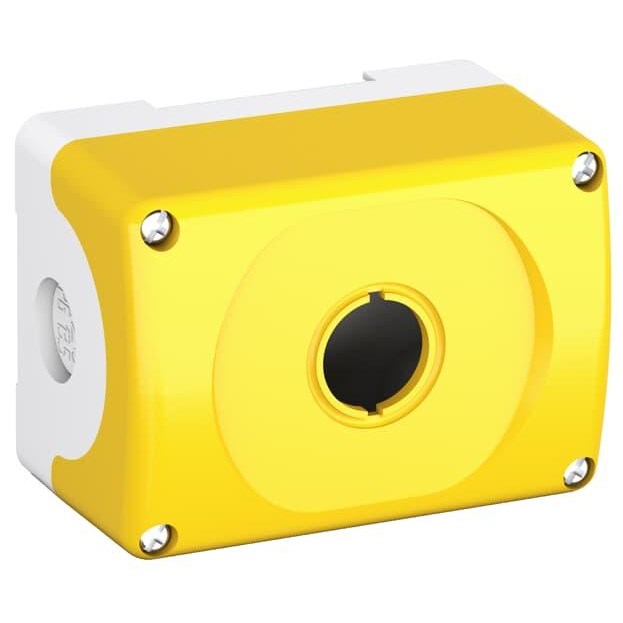

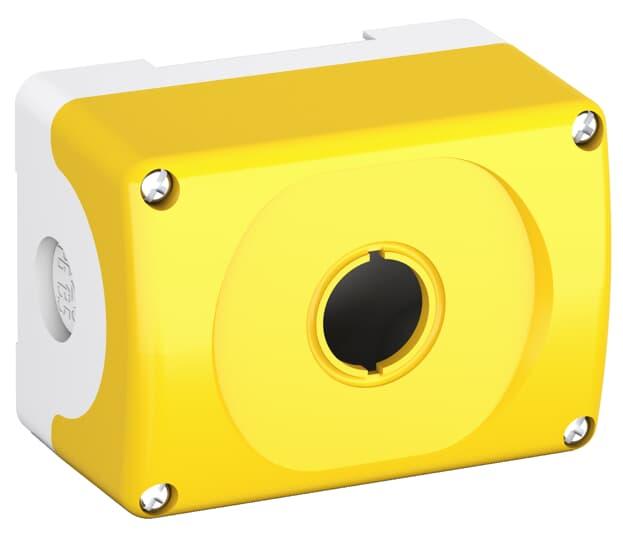

ABB MEPY1-0 Empty Plastic Enclosure Plastic Light Grey/Yellow 101W 75H 61D

Product Code: MEPY1-0

  • IP66 rated for high protection
  • Durable plastic construction
  • Compact size: 101x75x61 mm
  • Wide temp range: -25 to 70°C
  • Compatible with various pilot devices
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operational Temperature Range (°C) -25 to 70
Suitable For MP, M2SS, M3SS, MT, CP, C2SS, P9M Pilot Devices
Dimensions (mm) 101W x 75H x 61D
Storage Temperature Range (°C) -40 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Product Type Empty Plastic Enclosure
Brand ABB
Colour Light Grey, Yellow
Degree of Protection IP66
Depth 61 mm
Height 75 mm
Housing Material Plastic
Material Plastic
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4X
Net Weight 0.165 kg
Operational Temperature -25 to 70 deg C
Storage Temperature -40 to 85 deg C
Suitable For Use With MP, M2SS, M3SS, MT, CP, C2SS and P9M Pilot Devices
Width 101 mm

Description

This pushbutton station is a plastic empty enclosure that comes with stainless steel screws. It has one seat and is available in yellow and light grey colours. This enclosure is designed for compact and modular applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
