Specifications

Cross Section (mm²)	100
Dimensions (mm)	200W x 66H x 56D
Suitable For	Earthing
Weight (kg)	0.48
Accessory Type	Busbar
Type	Equipotential Bonding
Connection (Solid/Stranded)	5 x 2.5 - 25mm²
Connection Rd (Solid/Stranded/Cable)	3 x 8 - 10mm or 16 - 95mm²
Connection Fl (Solid/Stranded/Cable)	1 x -30 x 4mm

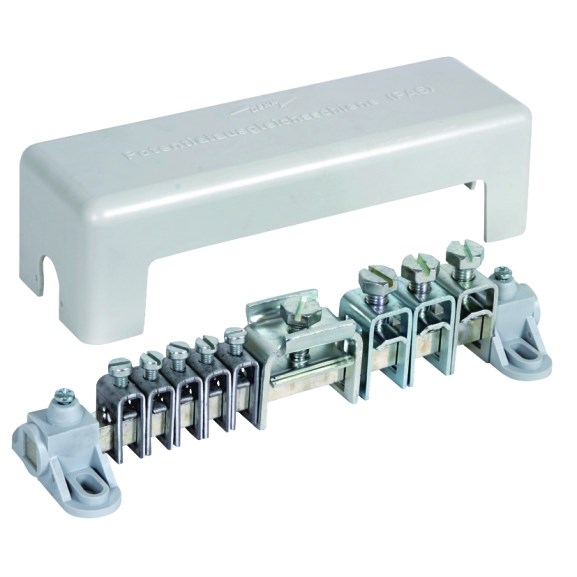

Product Type	Equipotential Bonding Busbar
Brand	DEHN
Connection Size	3 x 8-10 mm, 16-95 sq-mm
Connection Type	5 x 2.5-25 sq-mm
Contact Material	Brass
Cross Section	100 sq-mm
Depth	56 mm
Height	66 mm
Lightning Current Carrying Capability	100 kA
Model	With Covering Cap
Standards and Approvals	EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), IEC/EN 62305-3, DIN VDE 0609
Weight	476 g
Width	200 mm
