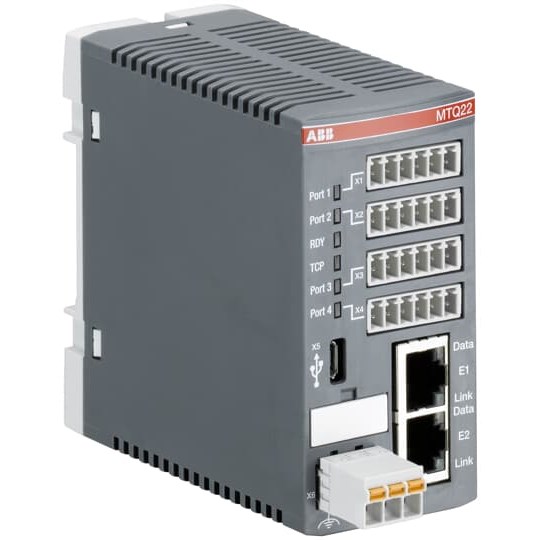

ABB MTQ22.0 ModbusTCP Interface 24VDC

Product Code: MTQ22.0

  • Suitable for 24 VDC systems
  • IP20 protection rating
  • Easy DIN rail mounting
  • Compact size: 45x90x96 mm
  • Operates from 0 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 45W x 90H x 96D
Operational Temperature Range (°C) 0 to +60
Rated Control Supply Voltage DC (V) 24
Rated Supply Voltage DC (V) 24
Rated Supply Voltage AC (V) 24
Supply Voltage Type DC
Product Type ModbusTCP Interface
Brand ABB
Communication Protocols Modbus
Degree of Protection IP20
Depth 96 mm
Height 90 mm
Mounting Type DIN Rail
Number of Parallel Interfaces 2
Number of PROFINET Interfaces 2
Number of RS-422 Interfaces 2
Number of RS-485 Interfaces 2
Number of Serial TTY Interfaces 2
Number of USB Interfaces 2
Number of Wireless Interfaces 2
Operational Temperature 0 to 60 deg C
Rated Voltage 24 VDC
Standards and Approvals CAN/CSA C22.2 No.142, IEC/EN 61131-2, UL 508
Width 45 mm

Description

The MTQ22-FBP.0 Ethernet communication module supports the Modbus TCP network protocol and allowes the connection of up to 4 UMC100.3 motor controllers. Can be mounted to DIN rail.
