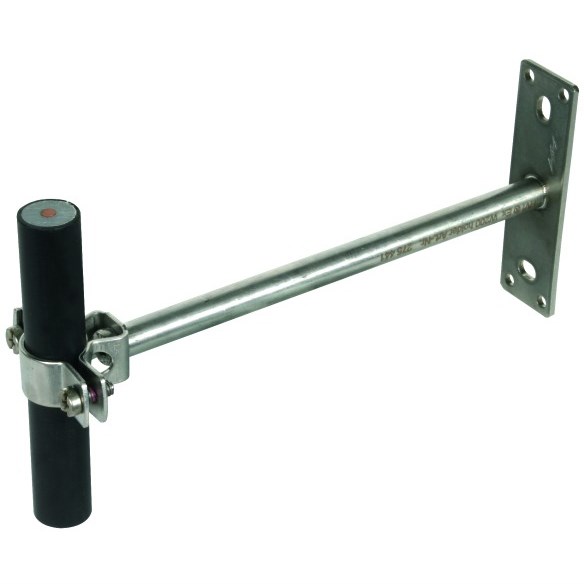

DEHN 275441 Conductor Holder M6 x 14mm Screw 10mm W 6mm D 22mm H M8 304 Stainless Steel

Product Code: 275441

  • Durable 304 stainless steel construction
  • Compatible with HVI systems
  • M6 x 14 mm screw connection
  • Meets DIN IEC/TS 62561-8 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 10W x 22H x 6D
Suitable For HVI Conductor
Weight (kg) 0.24
Fixing Hole Ø (mm) [4x] Ø5.1 / [2x] 7 x 10 mm
Mounting Method Bore hole
Rod Diameter (mm) 20
Holder Material Stainless steel 304 (V2A)
Saddle Material Stainless steel 304 (V2A)
Carrier Material Stainless steel 304 (V2A)
Fixing Screw Type M6 x 14mm
Product Type Conductor Holder
Brand DEHN
Base Material Stainless steel 304 (V2A)
Connection Type M6 x 14 mm Screw
Depth 6 mm
Height 22 mm
Material 304 Stainless Steel
Mounting Type With screw clamp
Standards and Approvals DIN IEC/TS 62561-8, VDEV 0185-561-8
Suitable For Use With HVI
Thread Size M8
Weight 240 g
Width 10 mm
