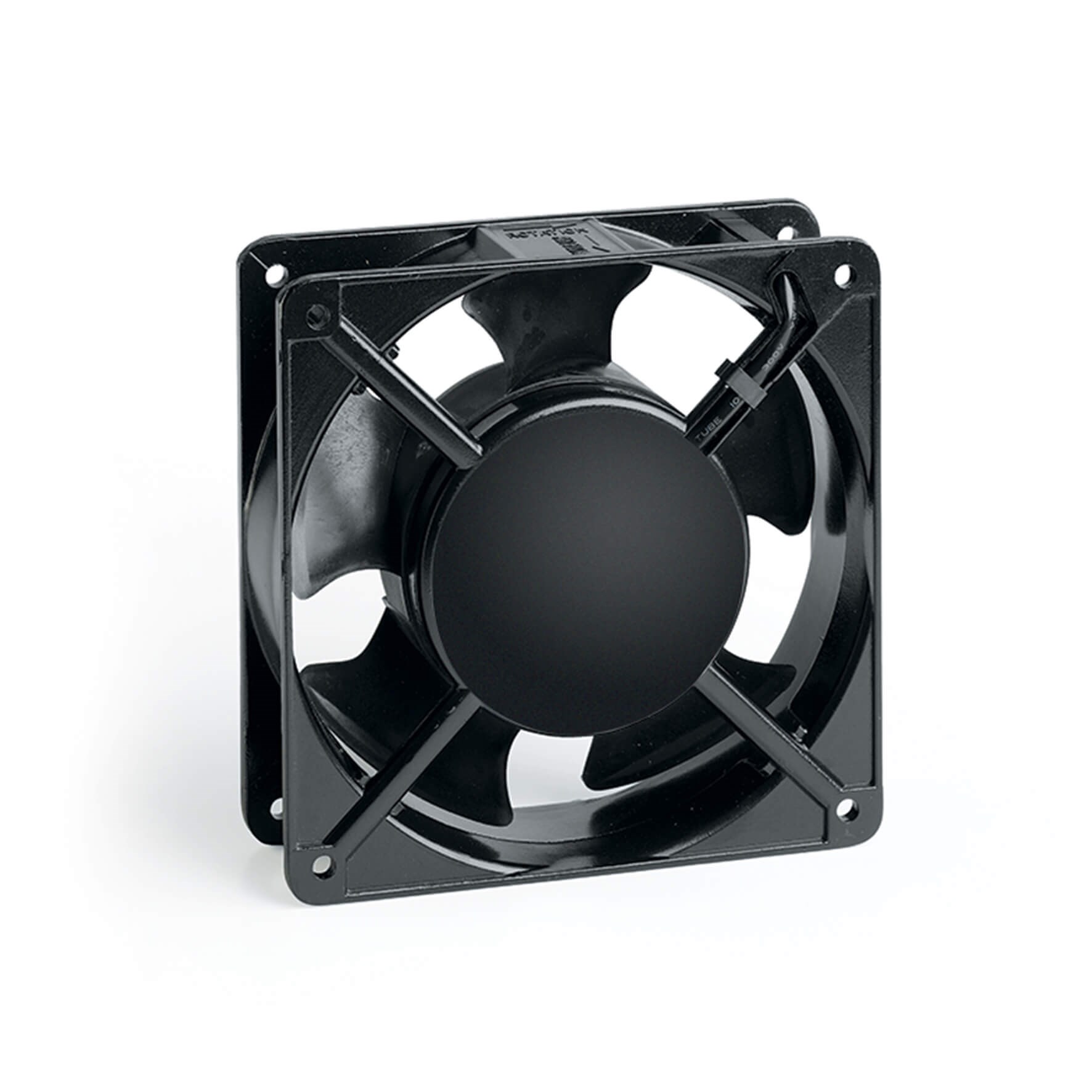

Fandis A12B12HTSW00 Axial Frame Fan 138cu-m/h 178cu-m/h 115VAC IP20 120W 120H Die-Cast Aluminum Black

Product Code: A12B12HTSW00

  • Dual airflow options: 138 or 178 cu-m/h
  • Power efficient with 18W and 20W ratings
  • Operates on 115 VAC at 50/60 Hz
  • Sturdy die-cast aluminium construction
  • Compact size: 120x120x38 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Air Flow (m³/h) 138/178
Dimensions (mm) 120H x 120W x 38D
Operational Temperature Range (°C) -10 to +60
Rated Current (A) 0.210/0.180
Rated Frequency (Hz) 50/60
Rated Power (W) 20/18
Rated Voltage AC (V) 115
Class of Insulation A
Noise Level (dBA) 44/48
Product Type Axial Frame Fan
Brand FANDIS
Air Flow 138 cu-m/h, 178 cu-m/h
Colour Black
Degree of Protection IP20
Depth 38 mm
Height 120 mm
Housing Material Die-Casting Aluminium
Insulation Class A
Material Die-Cast Aluminium
Noise Level 44 dBA, 48 dBA
Operational Temperature -10 to 60 deg C
Rated Current 0.21 A, 0.18 A
Rated Frequency 50/60 Hz
Rated Power 20 W, 18 W
Rated Voltage 115 VAC
Width 120 mm
