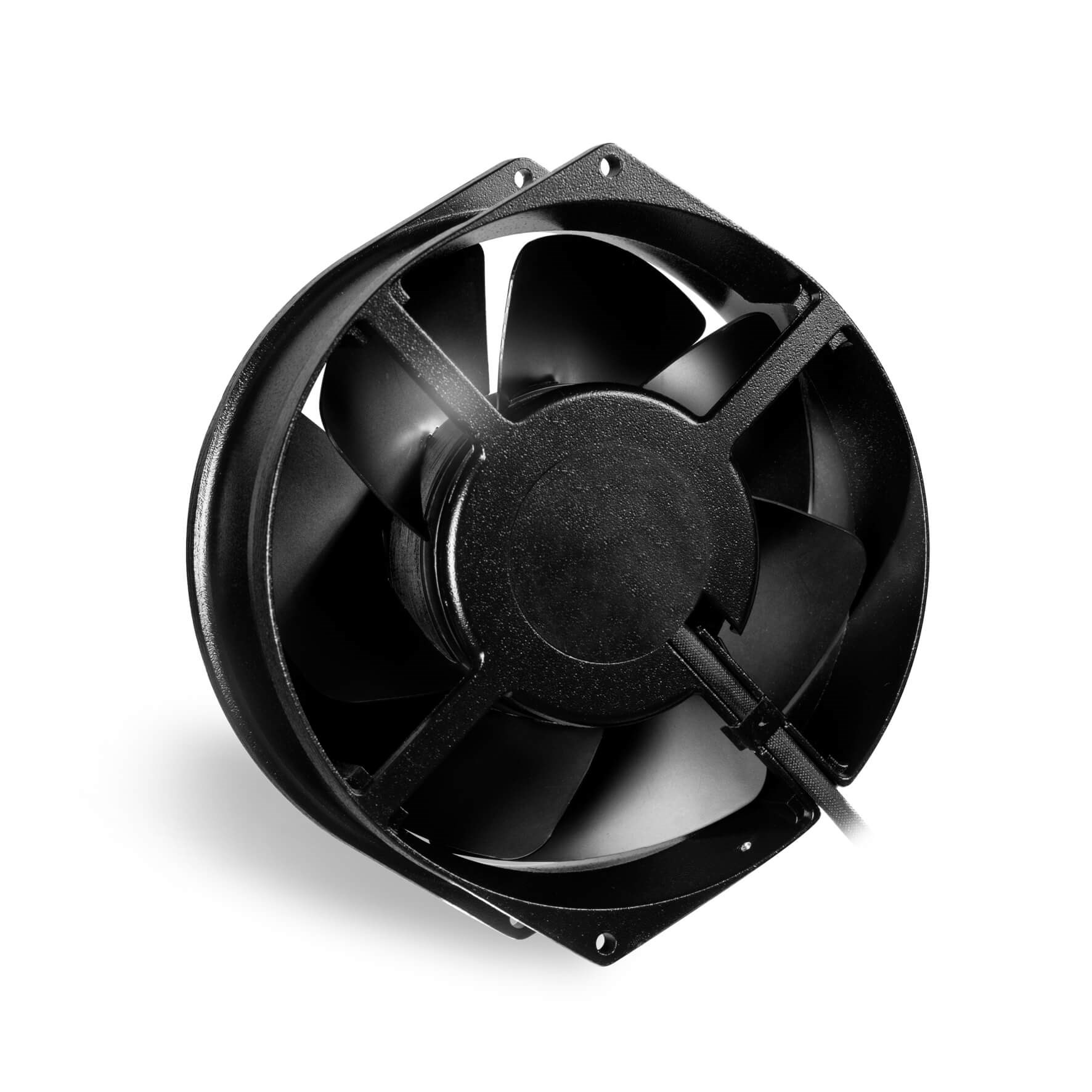

Fandis A17M23SWBMTO Axial Frame Fan 331cu-m/h 391cu-m/h 230VAC IP44 150W 172H Die-Cast Aluminum Black

Product Code: A17M23SWBMTO

  • Dual air flow options: 331 or 391 cu-m/h
  • Energy efficient with 42 W power consumption
  • Operates on 230 VAC at 50/60 Hz
  • Durable die-cast aluminium construction
  • IP44 rated for protection against dust and water
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Air Flow (m³/h) 332/391
Operational Temperature Range (°C) -40 to +90
Rated Current (A) 0.250/0.230
Rated Frequency (Hz) 50/60
Rated Power (W) 42/42
Rated Voltage AC (V) 230
Dimensions (mm) 172H x 150W x 55D
Class of Insulation F
Noise Level (dBA) 49/53
Product Type Axial Frame Fan
Brand FANDIS
Air Flow 331 cu-m/h, 391 cu-m/h
Colour Black
Degree of Protection IP44
Depth 55 mm
Height 172 mm
Housing Material Die-Casting Aluminium
Insulation Class F
Material Die-Cast Aluminium
Noise Level 49 dBA, 53 dBA
Operational Temperature -40 to 90 deg C
Rated Current 0.25 A, 0.23 A
Rated Frequency 50/60 Hz
Rated Power 42 W, 42 W
Rated Voltage 230 VAC
Width 150 mm
