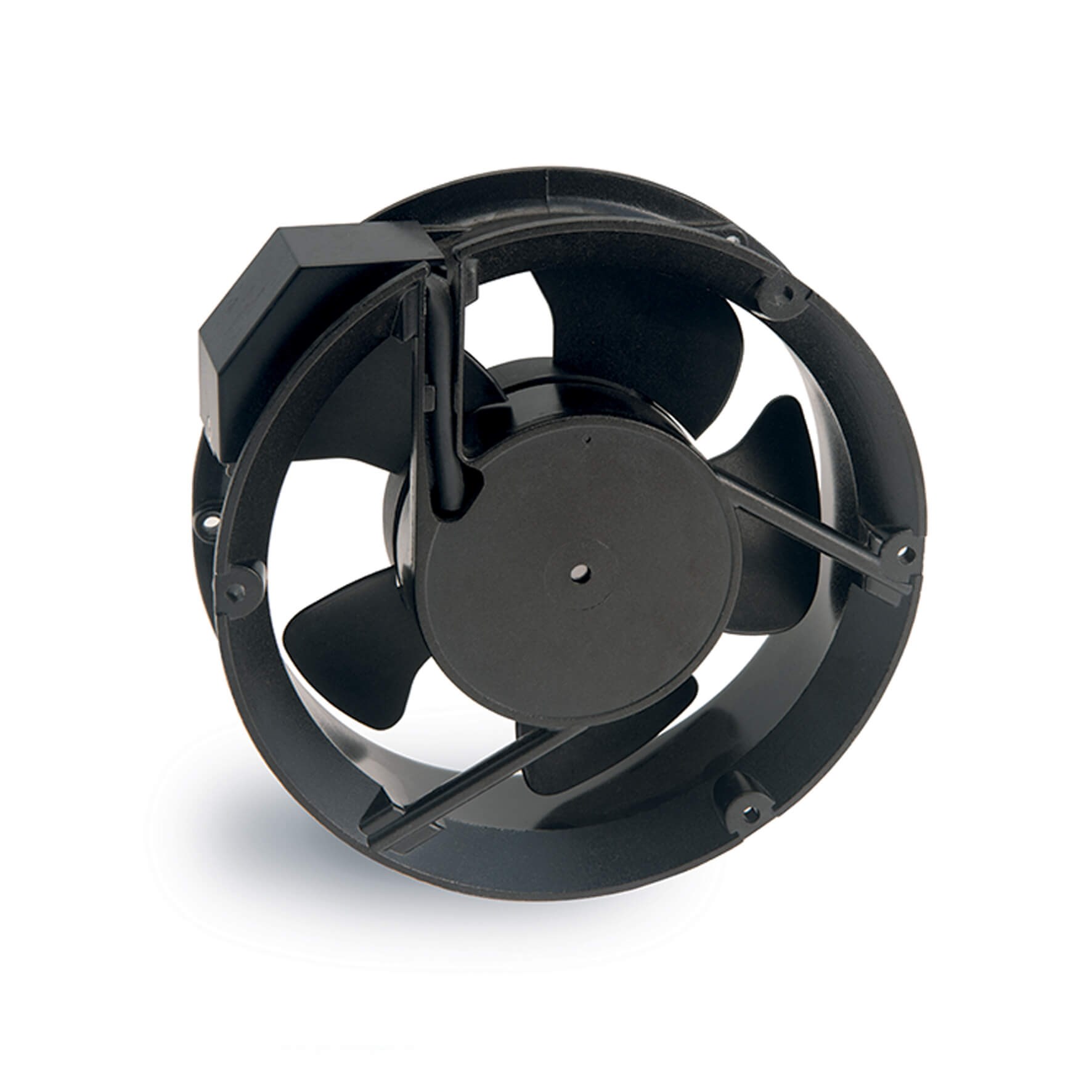

Fandis C17B23HTBF00 Axial Frame Fan 300cu-m/h 360cu-m/h 230VAC IP44 150W 172H Die-Cast Aluminum Black

Product Code: C17B23HTBF00

  • Air flow up to 360 cu-m/h for efficient ventilation
  • Low noise levels at 54-58 dBA
  • Durable die-cast aluminium construction
  • IP44 rated for protection against dust and splashes
  • Operates in extreme temps from -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Air Flow (m³/h) 300/360
Operational Temperature Range (°C) -40 to +70
Rated Current (A) 0.11/0.11
Rated Frequency (Hz) 50/60
Rated Power (W) 27/26
Rated Voltage AC (V) 230
Dimensions (mm) 172H x 150W x 38D
Noise Level (dBA) 54/58
Product Type Axial Frame Fan
Brand FANDIS
Air Flow 300 cu-m/h, 360 cu-m/h
Colour Black
Degree of Protection IP44
Depth 38 mm
Height 172 mm
Housing Material Die-Casting Aluminium
Insulation Class B
Material Die-Cast Aluminium
Noise Level 54 dBA, 58 dBA
Operational Temperature -40 to 70 deg C
Rated Current 0.11 A, 0.11 A
Rated Frequency 50/60 Hz
Rated Power 27 W, 26 W
Rated Voltage 230 VAC
Width 150 mm
