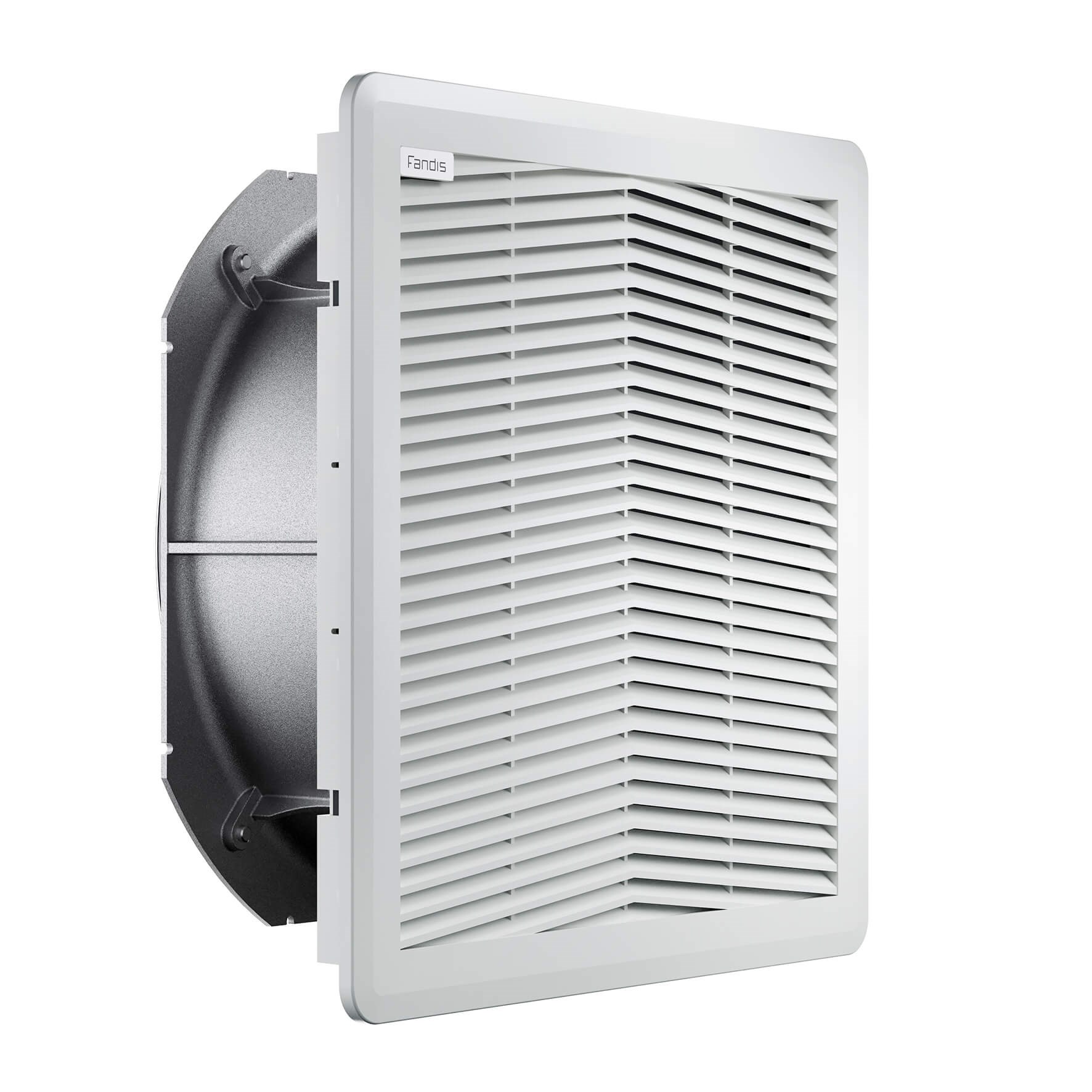

Fandis FPF20KR230BEC120 Filter Fan 520cu-m/h 580cu-m/h 230VAC 24 to 250VDC IP54 325W 325H Synthetic Fiber

Product Code: FPF20KR230BEC120

Air flow options: 520 or 580 cu-m/h
Power usage: 76W or 95W
Dual voltage: 230VAC, 24-250VDC
IP54 protection for durability
CE and UKCA certified

Specifications

Rated Frequency (Hz)	50/60
Rated Voltage AC (V)	230
Product Type	Filter Fan
Brand	FANDIS
Series	FPF20K
Air Flow	520 cu-m/h, 580 cu-m/h
Colour	Grey RAL 7032
Degree of Protection	IP54
Height	325 mm
Material	Synthetic Fiber
Noise Level	60 dBA, 62 dBA
Operational Temperature	-20 to 60 deg C
Rated Current	0.333 A, 0.418 A
Rated Power	76 W, 95 W
Rated Voltage	230 VAC, 24-250 VDC
Standards and Approvals	CE, UKCA
Width	325 mm
Wire Cross Section	20-14 AWG

Documents

IPD Product Catalogue

IPD Product Catalogue V17
