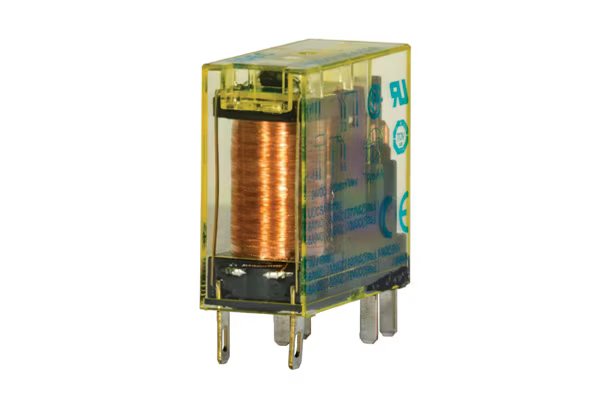

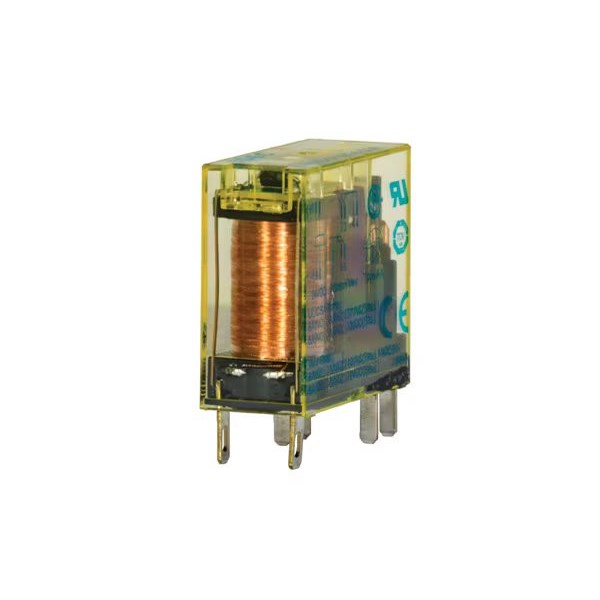

IDEC RF2S-1A1BD1-D24 Force Guided Relay 1NO-1NC 24VDC Coil 2-Pole 6A

Product Code: RF2S-1A1BD1-D24

  • Force guided relay with 1NO+1NC contacts
  • Rated for 6A current and 0.7W power
  • Coil operates at 24 VDC
  • Long electrical life: 100,000 ops
  • CE, CSA, UL approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 1000
No. of Poles 2
Power Consumption (W) 0.7
Pollution Degree 2
Rated Insulation Voltage (V) 250
Coil Voltage DC (V) 24
Weight (g) 18
No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Minimum Mechanical Life 10,000,000
Operating Humidity 5 to 85%
Minimum Electrical Life 100,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Maximum Switching Current (A) 6
Product Type Force Guided Relay
Brand IDEC
Coil Voltage 24 VDC
Contact Configuration 1NO+1NC
Contact Material AgNi+Au Clad
Contact Resistance 100 MOhm
Degree of Pollution IP2
Degree of Protection RTII (Flux-Tight), RTIII (Sealed)
Electrical Life 100000 Operations
Humidity 5-85%
Insulation Resistance 1000 MOhm
Mechanical Life 10000000 Operations
Number of Poles 2
Rated Current 6 A
Rated Power 0.7 W
Shock Resistance 1000 ms
Standards and Approvals CE, CSA C22.2 14 File LR35144, UL60947-4-1a UL/Recognition File E55996
Vibration Resistance 10-55 Hz
Weight 18 g

Description

The IDEC RF2S-1A1BD1-D24 is a force guided plug-in relay designed for safety-critical applications. It features a single-pole single-throw normally open (SPST-NO) and a single-pole single-throw normally closed (SPST-NC) contact configuration, operating on a 24V DC coil voltage. The relay includes an LED indicator for easy status verification and a diode for circuit protection. Its flux tight design ensures enhanced reliability in various environments.
