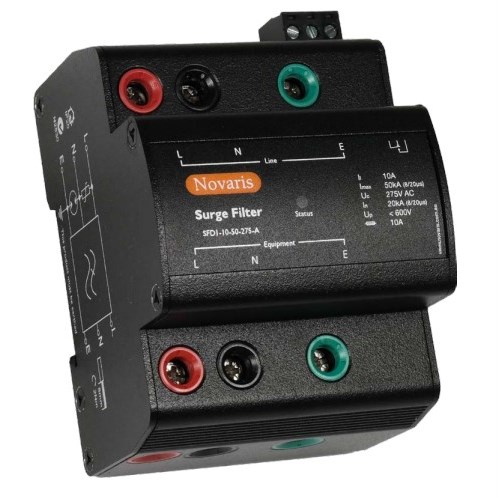

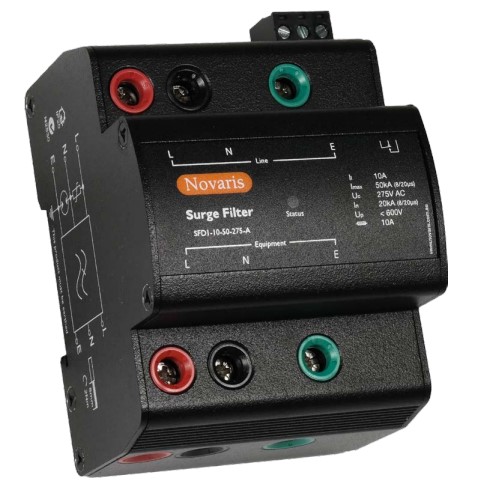

The Surge Filter is designed for 1 phase power systems with a nominal voltage of 230 VAC. It provides protection against surges and voltage spikes.
With a maximum continuous voltage of 275 V AC, it can handle high voltage fluctuations. The Surge Filter has a maximum discharge current of 100kA (L-N) and 60kA (N-PE) at 8/20ms, ensuring effective surge protection.
In terms of lightning impulse current, it can handle up to 12.5kA (L-N) and 15kA (N-PE) at 10/350 us. This makes it suitable for areas prone to lightning strikes.
The nominal discharge current is rated at 40kA (L-N) and 50kA (N-PE) at 8/20 us, providing reliable protection against electrical surges.
With a maximum load current of 20A, the Surge Filter can handle moderate power loads. It also has a low voltage protection level, with values below 2000V (L-N) and below 1500V (N-PE) when operating at the nominal discharge current.
The Surge Filter features an SPDT alarm contact, allowing for easy monitoring and notification of surge events. It is suitable for protecting sensitive loads in various applications.
Installation options include DIN rail or panel mount, providing flexibility in mounting configurations. The Surge Filter has an IP20 rating, offering protection against solid objects larger than 12mm in diameter.
Overall, the Surge Filter is a reliable solution for safeguarding electrical systems from surges and ensuring the smooth operation of sensitive equipment.
