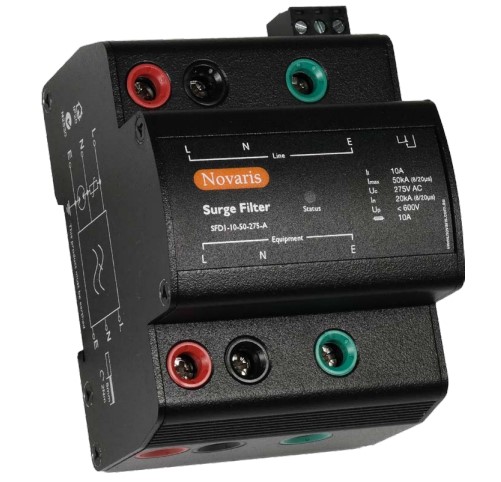

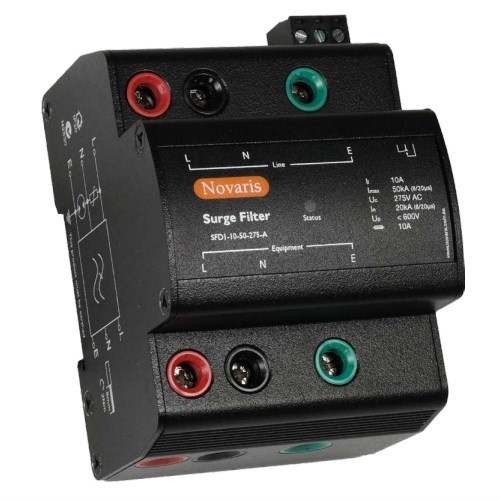

Novaris SFD1-32-100-275 Surge Filter 6.25kA 15kA 1-P 1 PH 32A 230VAC TS35 Panel Mount Metal IP20

Product Code: SFD1-32-100-275

  • Rated for 230 VAC, 32 A, single-phase use
  • LED status display for easy monitoring
  • Compact design: 115x108x69 mm
  • Mounts on TS35 DIN rail or panel
  • Fast response time <100 ns (N-PE)
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 115H x 108W x 69D
Lightning Impulse Current (10/350 &#181;s) - Iimp (kA) 12.5 (L-N), 15 (N-PE)
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 100 (L-N), 60 (N-PE)
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 40 (L-N), 50 (N-PE)
No. of Phases 1
Nominal Voltage AC (V) 230
Operational Temperature Range (&#176;C) -40 to 70
Maximum Load Current - I? (A) 32
Voltage Protection Level - Up (kV) < 2 (L-N), <1.5 (N-PE)
Product Type Surge Filter
Brand NOVARIS
Series SFD1
Degree of Protection IP20
Display Type LED Status
Fuse Rating 32 A
Height 69 mm
Humidity 5-95%
Interrupt Rating 100 A
Length 115 mm
Lightning Impulse Current 6.25 kA (L-N), 15 kA (N-PE)
Material Metal
Modes of Protection L-N, L-PE, N-PE
Mounting Type TS35 DIN Rail, Panel
Number of Poles 1
Operational Temperature -40 to 70 deg C
Phase 1
Rated Current 32 A
Rated Short Circuit Current 25 kA
Rated Voltage 230 VAC
Response Time <100 ns (N-PE)
Standards and Approvals IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, IEEE 62.41.2:2002
Tightening Torque 0.5 N-m, 2 N-m
Voltage Protection Level <600V (L-N)
Weight 750 g
Width 108 mm

Description

The Surge Filter is designed for 1 phase 230 VAC systems. It has a maximum continuous voltage of 275 V AC and a maximum discharge current of 100 kA (L-N) and 60kA (N-PE) at 8/20ms. The Lightning impulse current is 12.5kA (L-N) and 15kA (N-PE) at 10/350 us. The Nominal discharge current is 40kA (L-N) and 50kA (N-PE) at 8/20 us. It can handle a maximum load current of 32A and provides voltage protection levels below 2000V (L-N) and below1500V (N-PE). This Surge Filter is suitable for protecting sensitive loads and can be mounted on DIN rail or panels. It has an IP20 rating.
