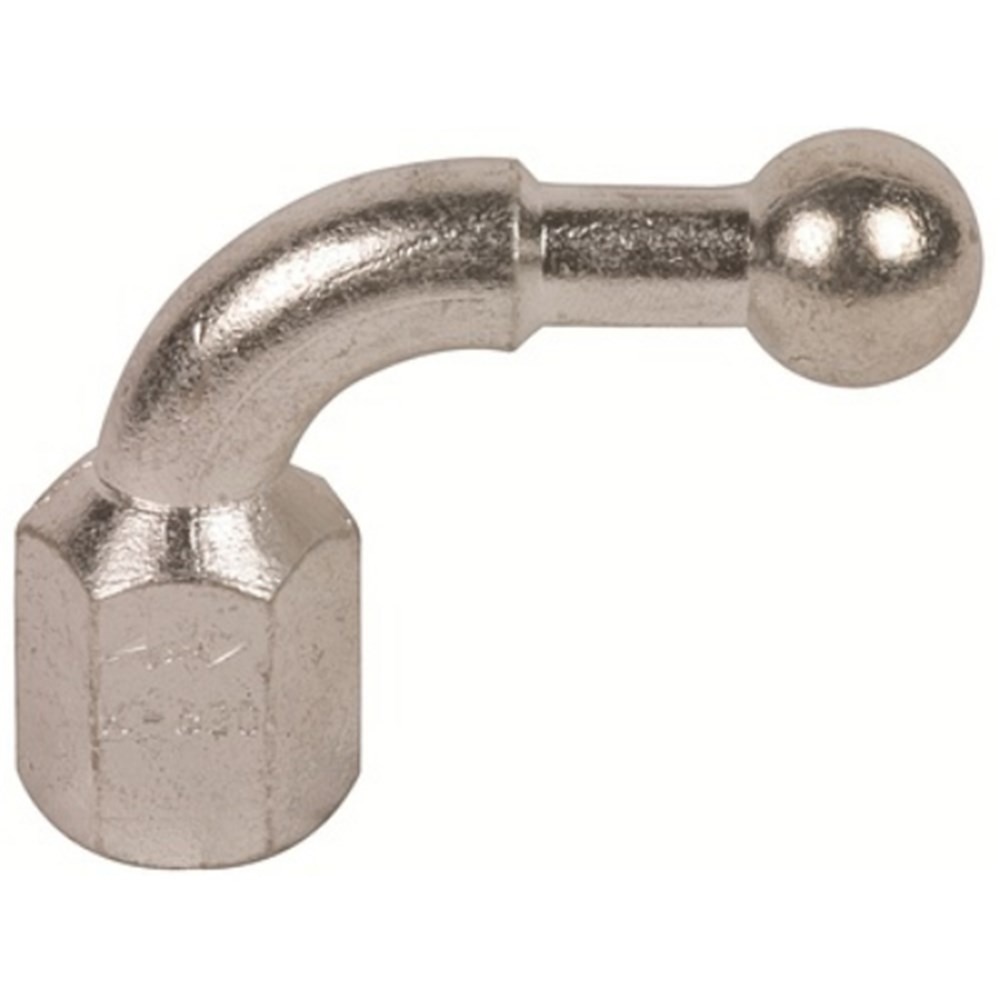

DEHN KFP20W90M12 Angled Fixed Ball Point With M12 Female Thread 19500A 13800A 20mm Internal Thread M12

Product Code: KFP20W90M12

  • Rated current: 19500 A, 13800 A
  • Connection: 20 mm Fixed Ball Point
  • Mounting: Internal Thread, M12 size
  • Material: Electrolytic & Tin Coated Copper
  • Complies with EN/IEC and DIN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) M12
Suitable For Earthing
Weight (kg) 0.2
Reference No. 707200
Type Short-Circuiting Devices
Wire Cross Section (mm²) 70
Weight (g) 204.4
Maximum Output Short-circuit Current (A) 19.5k (0.5s)
Mounting Method With internal thread
Outer Diameter (mm) 20
Product Type Angled Fixed Ball Point With M12 Female Thread
Brand DEHN
Angle 90 deg
Connection Type 20 mm Fixed Ball Point
Cross Section 70 sq-mm
Material Electrolytic Copper, Tin Coated Copper
Mounting Type Internal Thread
Rated Current 19500 A, 13800 A
Standards and Approvals EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
Suitable For Use With Earthing Rods
Thread Size M12
Weight 204 g
