Specifications

Dimensions (mm)	M16
Suitable For	Earthing
Weight (kg)	0.16
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	70
Weight (g)	158.4
Maximum Output Short-circuit Current (A)	19.5k (0.5s)
Mounting Method	With internal thread
Outer Diameter (mm)	20
Reference No.	706600

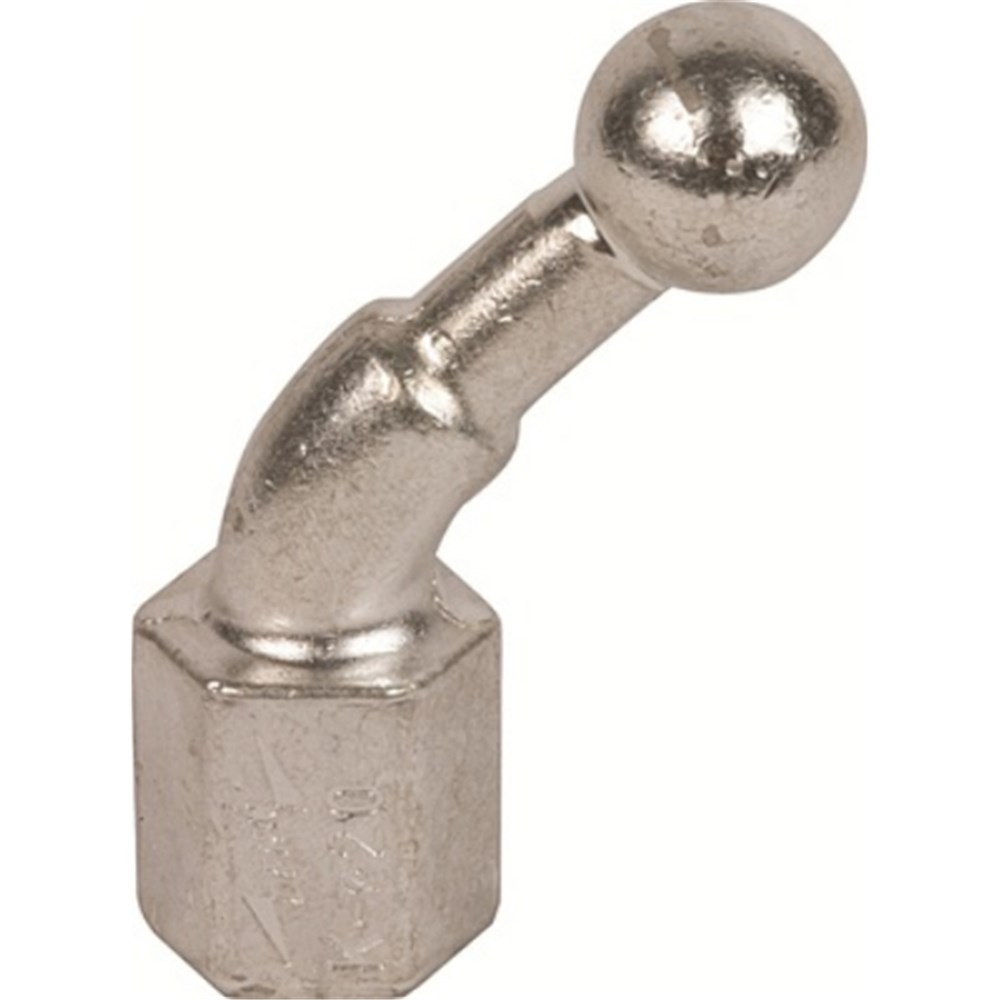

Product Type	Angled Fixed Ball Point With M16 Female Thread
Brand	DEHN
Angle	45 deg
Connection Type	20 mm Fixed Ball Point
Cross Section	70 sq-mm
Material	Electrolytic Copper, Tin Coated Copper
Mounting Type	Internal Thread
Rated Current	19500 A, 13800 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
Suitable For Use With	Earthing Rods
Thread Size	M16
Weight	158 g
