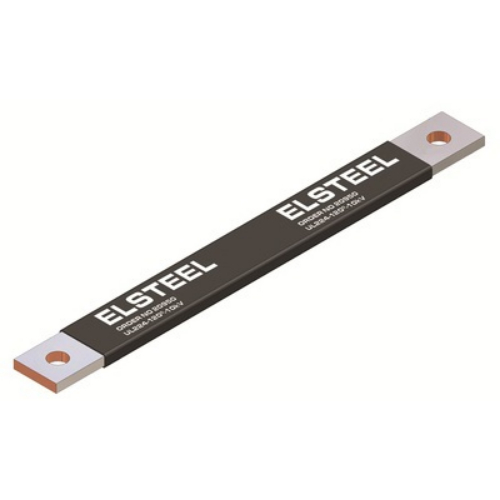

Elsteel ELF98394 Flexibar 160A 30sq-mm 195mm For Cage/Clamp Type Terminal

Product Code: ELF98394

  • Designed for cage/clamp type terminals
  • Handles up to 160 A nominal current
  • Rated insulation voltage of 1000 V
  • PVC insulation for durability and safety
  • Compact length of 195 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Length (mm) 195
Nominal Current (A) 160
Rated Insulation Voltage (V) 1000
Rated Impulse Withstand Voltage (kV) 8
Suitable For Cage/Clamp type terminal
Product Type Flexibar
Brand ELSTEEL
Area 30 sq-mm
Insulation Material PVC
Length 195 mm
Nominal Current 160 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Suitable For Use With Cage/Clamp Type Terminal

Description

The Flexibar 160A is a high-quality product designed for efficient electrical connections. It features 0.20mm annealed Cu-ETP wires with an area of 30mm² and a length of 195mm. The contact areas are made of Cu-ETP tube and are solder-less pressed, ensuring reliable performance. This flexibar has a rated operational temperature of 105°C, making it suitable for various applications. It also has a device side connection that is compatible with cage/clamp type terminals.
