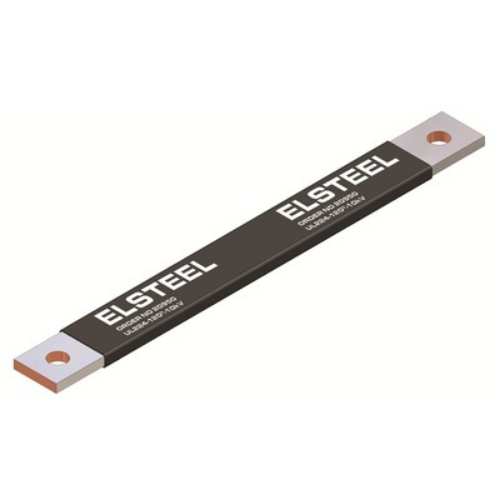

ELSTEEL ELF98396 FLEXIBAR 160A, AREA=30MM², L=345MM

Product Code: ELF98396

The Flexibar 160A is a high-quality product designed for efficient electrical connections. It features 0.20mm annealed Cu-ETP wires with an area of 30mm² and a length of 345mm. The contact areas are made of Cu-ETP tube and are solder-less pressed, ensuring reliable performance. This product is rated for an operational temperature of up to 105°C. It also has a device side connection that is compatible with cage/clamp type terminals.

Technical Specifications

Brand ELSTEEL
Insulation Material PVC
Length (mm) 345
Nominal Current (A) 160
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Suitable For Cage/Clamp type terminal
