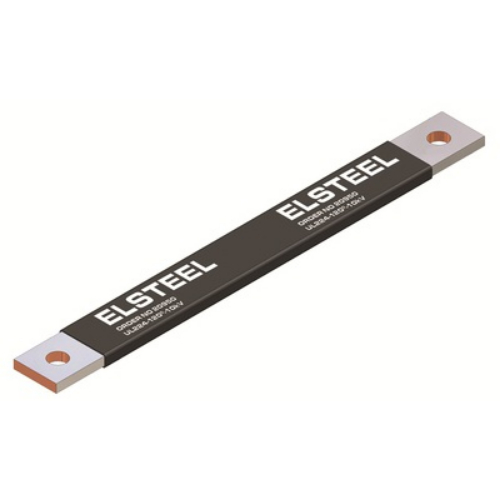

Elsteel ELF96635 Flexibar 160A 30sq-mm 345mm

Product Code: ELF96635

  • Compact 345 mm length for versatile use
  • Supports up to 160 A nominal current
  • High rated impulse withstand voltage of 8 kV
  • Durable PVC insulation material
  • Rated insulation voltage of 1000 V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Length (mm) 345
Nominal Current (A) 160
Rated Insulation Voltage (V) 1000
Rated Impulse Withstand Voltage (kV) 8
Suitable For Wide Range of manufacturers
Product Type Flexibar
Brand ELSTEEL
Area 30 sq-mm
Insulation Material PVC
Length 345 mm
Nominal Current 160 A
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V

Description

The Flexibar 160A is a high-quality product designed for engineers. It features 0.20mm annealed Cu-ETP wires with an area of 30mm² and a length of 345mm. The contact areas are made of Cu-ETP tube and are solder-less pressed. This product has a rated operational temperature of 105°C, making it suitable for various applications. Additionally, the device side connection is compatible with a wide range of manufacturers, providing flexibility and convenience in usage.
