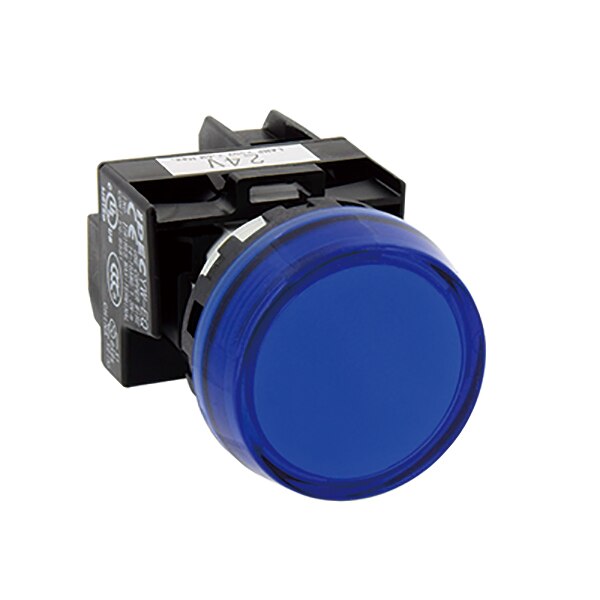

IDEC YW1P-1BEQM3S Flush Pilot Light Blue 230/240VDC 22mm Dia Mount Hole

Product Code: YW1P-1BEQM3S

  • IP66 rated for dust and water resistance
  • Momentary actuation for quick operation
  • Durable modular plastic bezel
  • Fits standard 22 mm cutouts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29.6W x 24H x 56.2D
Operating Voltage DC (V) 230/240
Operating Voltage AC (V) 230/240
Product Type Flush Pilot Light
Brand IDEC
Actuation Type Momentary
Bezel Material Modular Plastic
Colour Blue
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Model Flush Marking Full Voltage - With LED Lamp
Number of Positions 2

Description

The IDEC YW1P-1BEQM3S is a flush pilot light designed for 230/240V AC/DC applications and accommodates a 22mm mounting hole. It features space-efficient, 10mm thick contact blocks with a removable operator for ease of use. The unit's compact and lightweight design includes a durable metal bezel. Its separate contact block simplifies the installation and removal process, while the large lens of the pilot light ensures visibility from various angles.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
