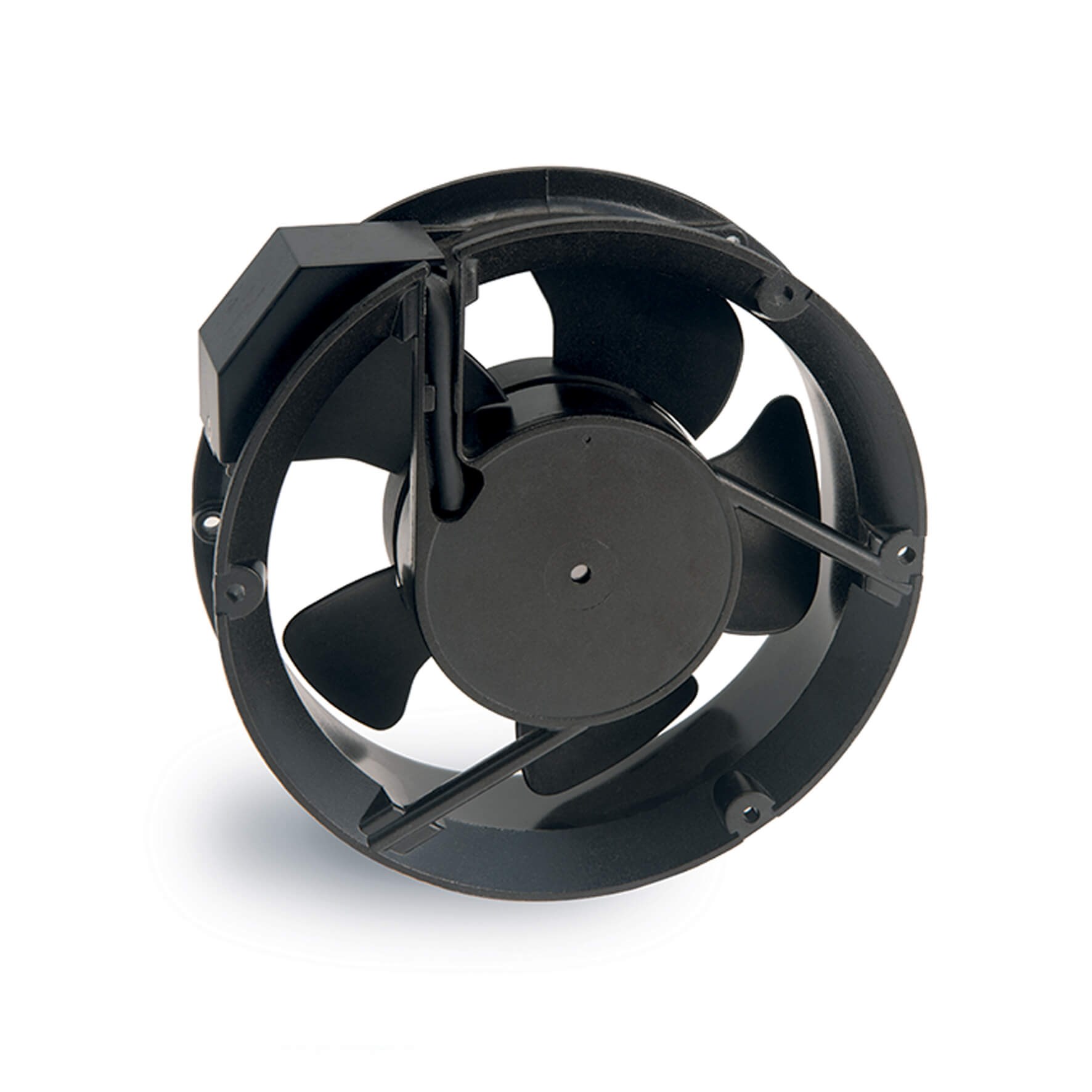

Fandis C18C23HTBF00 Axial Frame Fan 348cu-m/h 384cu-m/h 230VAC IP44 172W 172H Die-Cast Aluminum Black

Product Code: C18C23HTBF00

  • Air flow up to 384 cu-m/h
  • Energy-efficient at 29 W power
  • Durable die-cast aluminium build
  • Operates in -40 to 70°C range
  • Quiet operation at 50 dBA noise level
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Air Flow (m³/h) 348/384
Operational Temperature Range (°C) -40 to +70
Rated Current (A) 0.120/0.120
Rated Frequency (Hz) 50/60
Rated Power (W) 29/29
Rated Voltage AC (V) 230
Dimensions (mm) 172H x 172W x 51D
Noise Level (dBA) 50/55
Product Type Axial Frame Fan
Brand FANDIS
Air Flow 348 cu-m/h, 384 cu-m/h
Colour Black
Degree of Protection IP44
Depth 51 mm
Height 172 mm
Housing Material Die-Casting Aluminium
Insulation Class B
Material Die-Cast Aluminium
Noise Level 50 dBA, 55 dBA
Operational Temperature -40 to 70 deg C
Rated Current 0.12 A, 0.12 A
Rated Frequency 50/60 Hz
Rated Power 29 W, 29 W
Rated Voltage 230 VAC
Width 172 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
