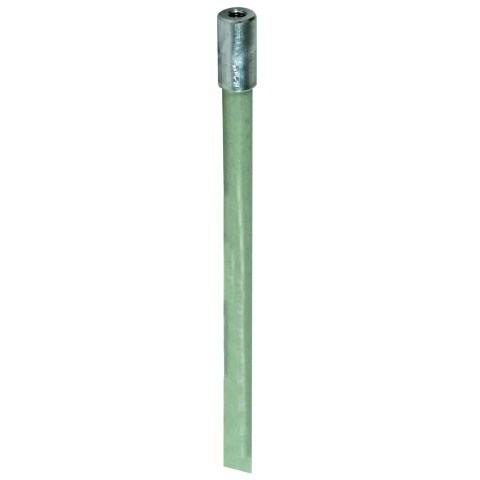

DEHN 106220 Iso Spacer W/Wall Socket 1015mm L 2mm W 102mm H Aluminium RAL 7035 Grey

Product Code: 106220

  • Aluminium construction for durability
  • RAL 7035 Grey colour
  • Complies with DIN IEC/TS 62561-8 standards
  • Suitable for isolated lightning protection systems
  • Operates in -50 to 100°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -50 °C to +100 °C
Dimensions (mm) 2W x 102H x 2D
Length (mm) 1015
Suitable For Isolated Lightning Protection
Weight (kg) 0.41
Surface Protection UV-stabilised and weather-resistant
Rod Diameter (mm) 16
Insulating Clearance (mm) 975
Accessory Type Spacer
Product Type Iso Spacer With Wall Socket
Brand DEHN
Ambient Temperature -50 to 100 deg C
Colour RAL 7035 Grey
Depth 2 mm
Finish xxDeletexx
Height 102 mm
Length 1015 mm
Material Aluminium
Standards and Approvals DIN IEC/TS 62561-8, VDEV 0185-561-8
Suitable For Use With Isolated Lightning Protection
Weight 0.41 kg
Width 2 mm
