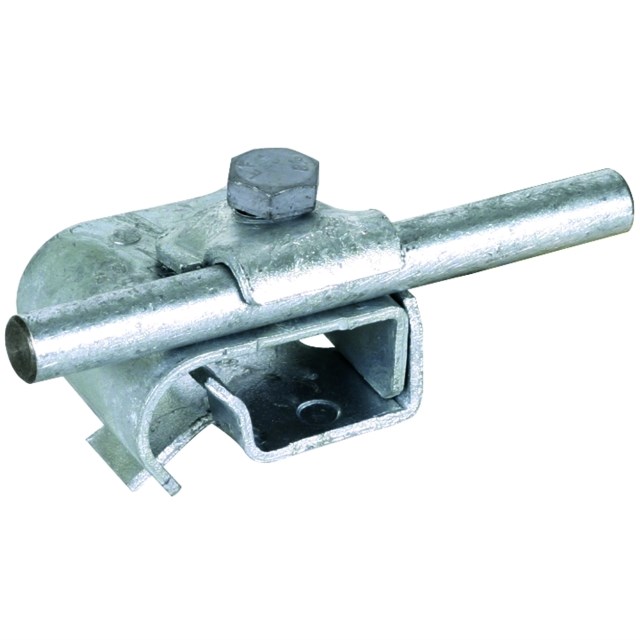

DEHN 339060 Gutter Clamp W/Clamping Frame 6-10mm M8 x 20mm M8 x 25mm Screw Steel

Product Code: 339060

  • Compatible with 6 mm dia round conductor
  • Handles lightning current up to 50 kA
  • Hot dip galvanized steel for durability
  • Clamping range from 6 to 10 mm
  • Meets EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 40W
Reference No. 339060
Suitable For Diameter round conductor 6mm
Weight (kg) 0.14
Width (mm) 40
Class (Lightning Current Carrying Capability) (kA) 50
Clamping Range (mm) 16-22
Weight (g) 133
Surface Protection Hot-dip galvanized
Gross Weight (g) 137.4
Rod Diameter (mm) 6 - 10
Clamping Range Rd/Rd (mm) 160
Clamping Range Bead (mm) 16-22
Product Type Gutter Clamp With Clamping Frame
Brand DEHN
Clamping Range 6-10 mm
Connection Type M8 x 20 mm, M8 x 25 mm Screw
Connector Type Gutter clamp
Finish Hot Dip Galvanized
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 50 kA
Material Steel
Screw Size M8
Standards and Approvals EN 62561-1
Suitable For Use With 6 mm Dia Round Conductor
Weight 137.4 g
Width 40 mm
