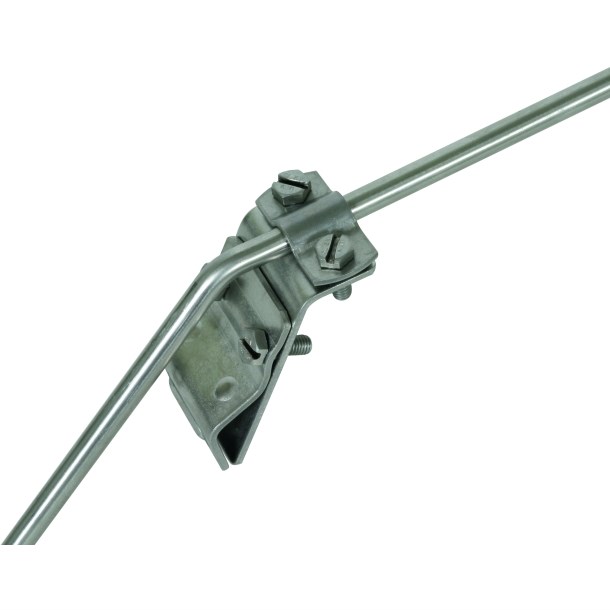

DEHN 338009 Gutter Clamp W/Twin Screw Cleat 7-10mm M6 x 16mm Screw Stainless Steel

Product Code: 338009

  • Stainless steel for durability
  • Fits 7 mm dia round conductors
  • M6 x 16 mm screw connection
  • Handles up to 50 kA lightning current
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 75W x 75H x 3D
Reference No. 338009
Suitable For Diameter round conductor 7mm
Weight (kg) 0.136
Clamping Range (mm) Rd - 7-10
Surface Protection Untreated
Rod Diameter (mm) 7 - 10
Clamping Range Rd/Rd (mm) 130
Product Type Gutter Clamp With Twin Screw Cleat
Brand DEHN
Clamping Range 7-10 mm
Connection Type M6 x 16 mm Screw
Connector Type Gutter Clamp
Depth 3 mm
Finish Untreated
Height 75 mm
Lid Screw Type Hexagon Screw
Lightning Current Carrying Capability 50 kA
Material Stainless Steel
Screw Size M6 x 16mm
Standards and Approvals EN 62561-1
Suitable For Use With 7 mm Dia Round Conductor
Weight 0.136 kg
Width 75 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
